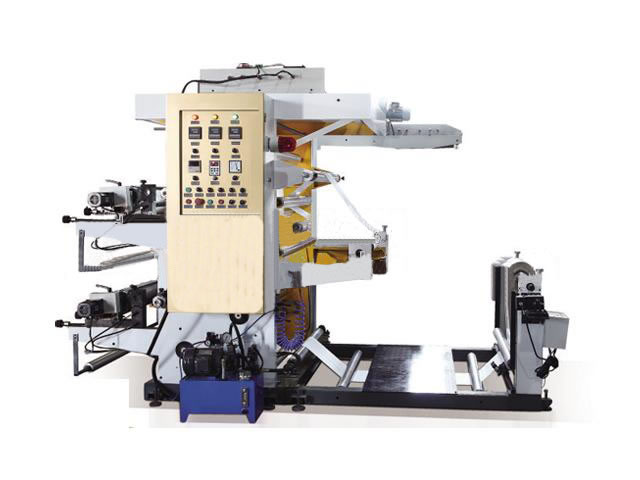

YT Series Middle speed 2 Colors Flexographic Printing Machine
| YT Series Middle speed 2 Colors Flexographic Printing Machine |
| Categories: Printing Machine Series |
| Tel: 0086 577-66817170 |
| Mobile: 0086 15858567170 |
| Email: rahsjx@rahsjx.com |
| Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA. |
1.Feature:
1.1 Easy operation, flexible starting, accurate color register .
1.2 The meter counter can set printing quantity according to the requirements,stop the machine automatically at the quantity
or when the material is cut off.
1.3 Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
1.4 The printing ink is spread by the anilox cylinder with even ink color.
1.5 Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.360continuous and adjustable longitudinal register device.
1.6 The frequency control of motor speed adapts to different printing speeds.
1.7 Suitable for printing the packing material as PE and PP plastic bags,glass papers rolling papers,etc.
2.Main Technical Specification
Model
YT-2600
YT-2800
YT-21000
Suitable material
PP, PE,PVC, BOPP, CPP, paper, etc
Max printing width
600mm
800mm
1000mm
Max printing width
560mm
760mm
960mm
printing length
191-960mm
191-960mm
191-960mm
Unwind diameter
φ450mm
φ450mm
φ450mm
Printing Speed
5-50m/min
5-50m/min
5-50m/min
Machine speed
60m/min
60m/min
60m/min
Plate thickness
2.38mm
2.38mm
2.38mm
Total power
8.5kw
11.2kw
15.45kw
Dimension
2.3×1.8×2.2m
2.3×2×2.2m
2.3×2.2×2.2m
Weight
1800kg
2000kg
2500kg
-
