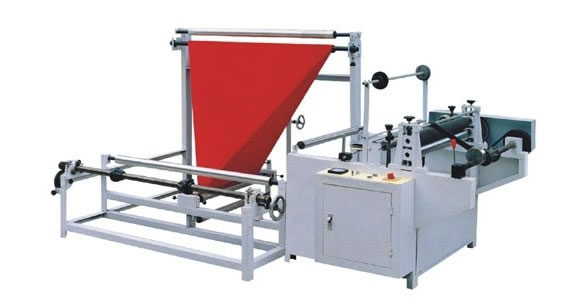

ZB-1000/1200/1400/1600/1800 Hem Folding and Rewinder Machine

[1].Feature:

The vertical gusseting machine is used for plastic material folding and rolling.

[2].Main Technical Specification

Model

ZB-1000

ZB-1200

ZB-1600

Max width of material

1000mm

1200mm

1600mm

After fold size

500mm

600mm

800mm

rewind diameter

600mm

600mm

600mm

Winding speed

90m/min

90m/min

90m/min

Power

1.1kw

1.5kw

2kw

gross weight

400kg

500kg

600kg

dimension

2.5×1.5×1.6m

2.5×1.7×1.6m

2.5×1.9×1.6m

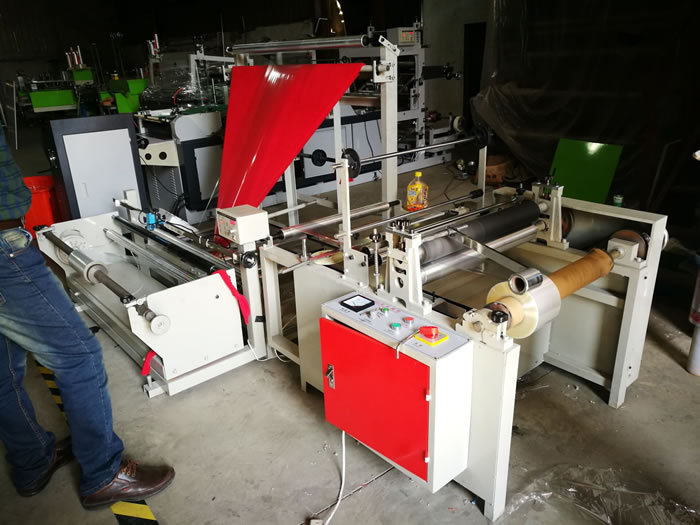

[3] reality machine picture
