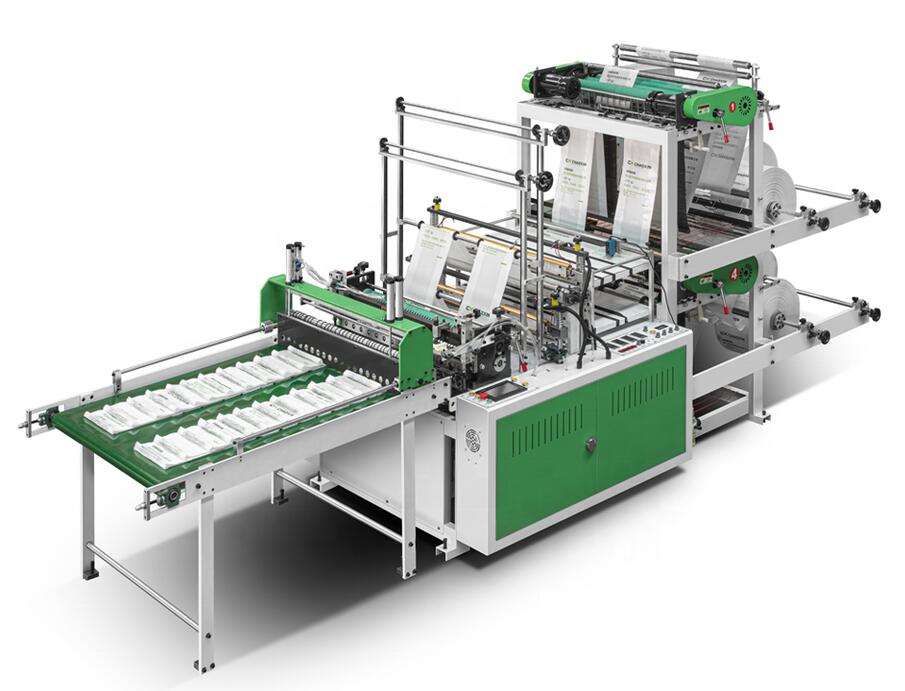

HSXJ-600/800/1000/1200 Computer 4 Lines Cold Cutting Bag Making Machine

Feature:

1) This machine is suitable for sealing and cutting HDPE, LDPE and PP plastic film, it is one of the best

equipment for producing plastic film vest bag and flat bag.

2) This machine equipped with accurate photocell eye tracking ,can automatic control feeding, automatic

constant temperature control device, electric static removing.

3)The bag-making length is controlled by button,easy operation, stable performance and firm bottom sealing.

4)this machine is the most economical and suitable sealing and cutting bag machine, making large,middle,

small size bag with good speed.

Main Technical Specification:

Model

HSXJ-600

HSXJ-800

HSXJ-1000

Max. Bag width

500mm/250mm×4

700mm/350mm×4

900mm/450mm×4

Max. Bag length

200-800mm

200-800mm

200-800mm

Bag making speed

0.006-0.10mm

0.006-0.10mm

0.006-0.10mm

Work line

4lines

4lines

4lines

Error in Length

±1mm

±1mm

±1mm

Bag making Speed

30-100pcs/min ×4

30-100pcs/min ×4

30-100pcs/min ×4

Main Motor power

1.1kw

1.5kw

1.8kw

Heating Power

1.5kw

2kw

2.2kw

Total Power

3.5kw

5kw

6kw

Machine weight

800kg

1000kg

1200kg

Overall Dimensions

3.2×1.2×2m

3.2×1.5×2m

3.2×1.8×2m

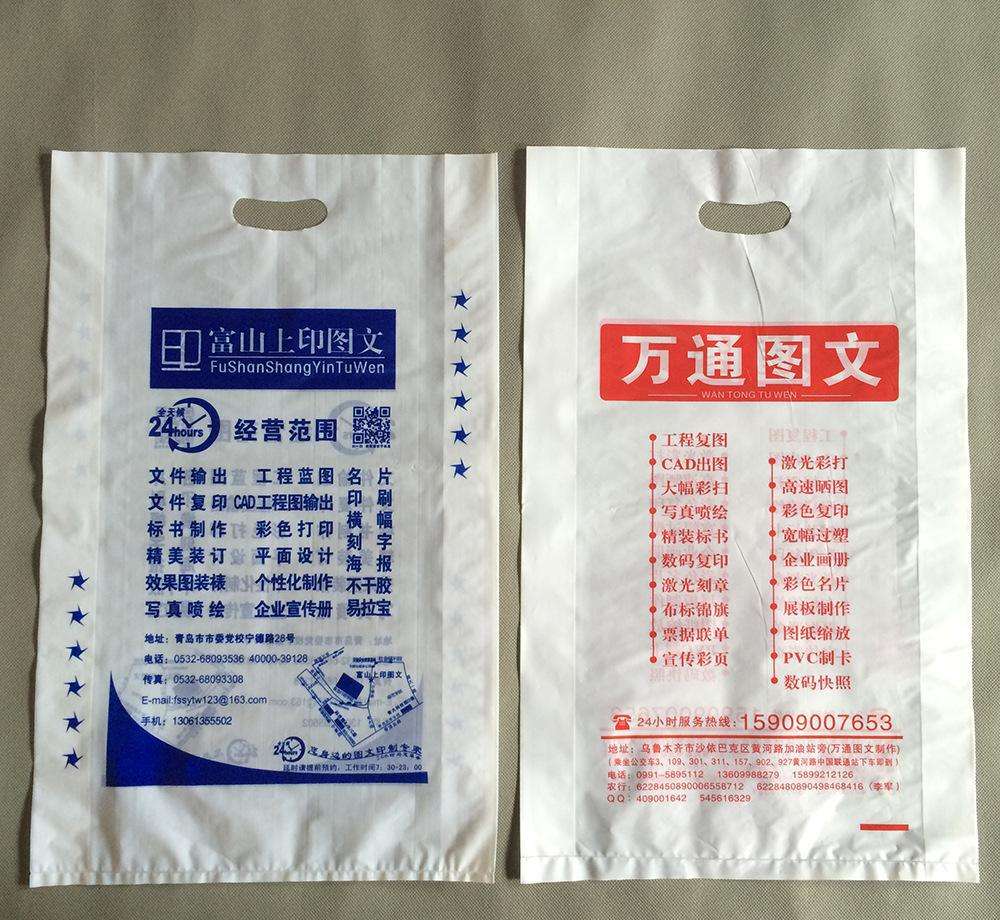

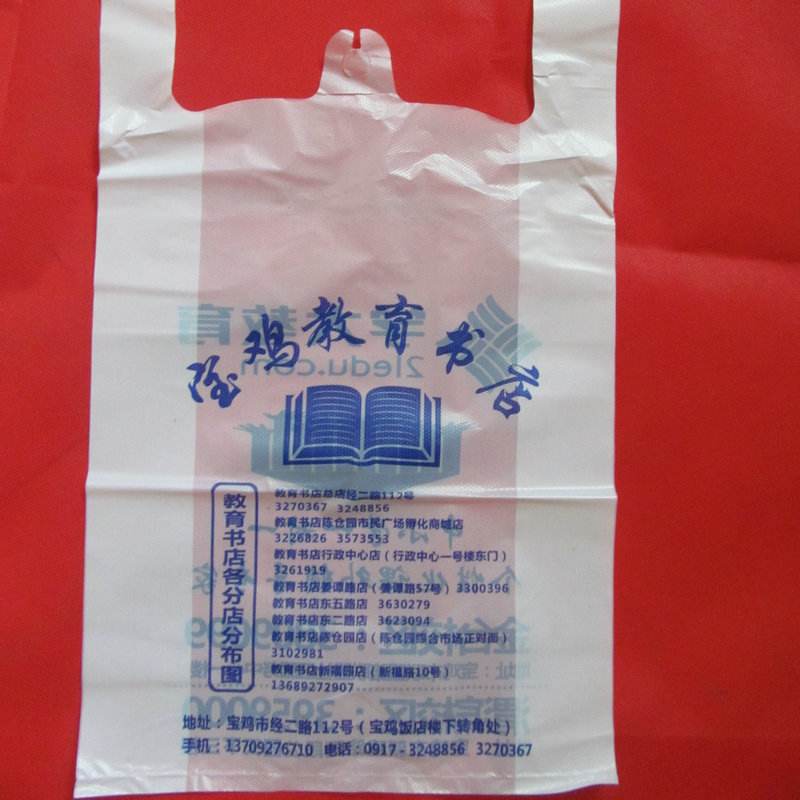

Bag Picture:
