ZFB Series Computer Automatic Middle sealing and Three Side Sealin Bag Making Macine
| ZFB Series Computer Automatic Middle sealing and Three Side Sealin Bag Making Macine |
| Categories: Bag Making Machine |
| Tel: 0086 577-66817170 |
| Mobile: 0086 15858567170 |
| Email: rahsjx@rahsjx.com |
| Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA. |
1. Features:
1.1 It adopts Two servo with the third traction mechanism to make discharging material as well as the materialon the
bracket with consistent speed drawn forward successively by the third traction motor to ensure discharging material and
its tension steady.
1.2 The automatic feeding mechanism can reduce the labor strength.
1.3 The structure of whole machine is sound with exquisite equipment as well as good-looking appearance.
1.4 It is ideal equipment at home with moderate speed, lower noise, good function.
1.5 Suitable Material: BOPP, COPP, PET, PVC, Nylon etc. plastic compound film, multiple-layer extruding film, aluminum plating compound film, pure Al foil compound film.
2. Main Technical Parameter
Model
ZFB-400
ZFB-600
Max bag-making width
400mm
600mm
Max bag-making length
600mm
600mm
Number of row
1-2row
1-2row
Max. Discharging speed
≤32m/min
≤32m/min
Max. Reeling of dimension
600 ×1250mm
600 ×1250mm
Temperature scop
0-300℃
0-300℃
Heating unit
16pcs
16pcs
Main motor
7.5kw
11kw
Pressing & cutting frequency
30-120section/min
30-120section/min
Power
15kw
22kw
Overall dimensions
10.5×1.7×1.9m
10.5×1.9×1.9m
Weight
5000kg
5800kg

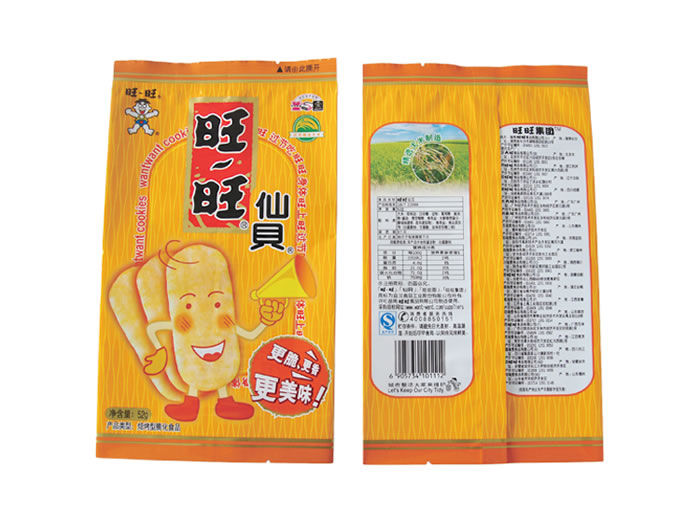

Bag product picture
-
