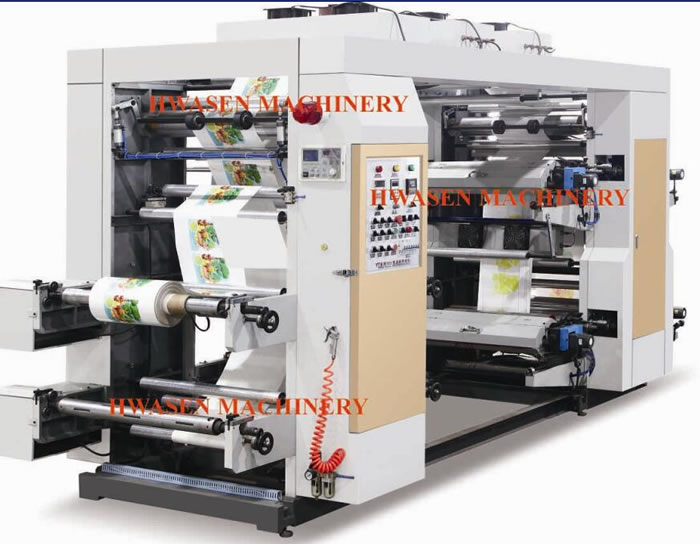

YT-4600/800/1000/1200 Normal Speed Helical Gear 4 Colors Flexographic Printing Machine

YT-4600/800/1000/1200 Normal Speed Helical Gear 4 Colors Flexographic Printing Machine |
Categories: Printing Machine Series |
suitable printing plastic film, paper roll,nonwoven fabric roll, etc. |
Tel: 0086 577-66817170 |
Mobile: 0086 15858567170 |
Email: rahsjx@rahsjx.com |
Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA. |
1.Feature:
1.1 Easy operation, flexible starting, accurate color register .
1.2 The meter counter can set printing quantity according to the requirements, stop the machine
automatically at the quantity or when the material is cut off.
1.3 Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
1.4 The printing ink is spread by the anilox cylinder with even ink color.
1.5 Reliable drying system coordinated with high speed rotation, it will automatically break circuit
when the machine stops.360continuous and adjustable longitudinal register device.
1.6 The frequency control of motor speed adapts to different printing speeds.
1.7 Suitable for printing the packing material as PE and PP plastic bags, glass papers rolling papers, etc.
2.Main technical specification
Model |
YT-4600 |
YT-4800 |
YT-41000 |
Max. Feed width |
600mm |
800mm |
1000mm |
Max. Print width |
560mm |
760mm |
960mm |
Printing length |
191-914mm |
191~914mm |
191~914mm |
Unwind diameter |
ф600mm |
ф600mm |
ф600mm m |
Printing speed |
5~70m/min |
5~70m/min |
5~70m/min |
Rubber plate thickness |
2.38mm |
2.38mm |
2.38mm |
Total power |
10.87Kw |
12.5 Kw |
14.37Kw |
Gross weight |
3000kg |
3500 kg |
4000 |
Dimension |
4.6×1.6×2.4m |
4.6×1.6×2.4m |
4.6×1.6×2.4m |
-
