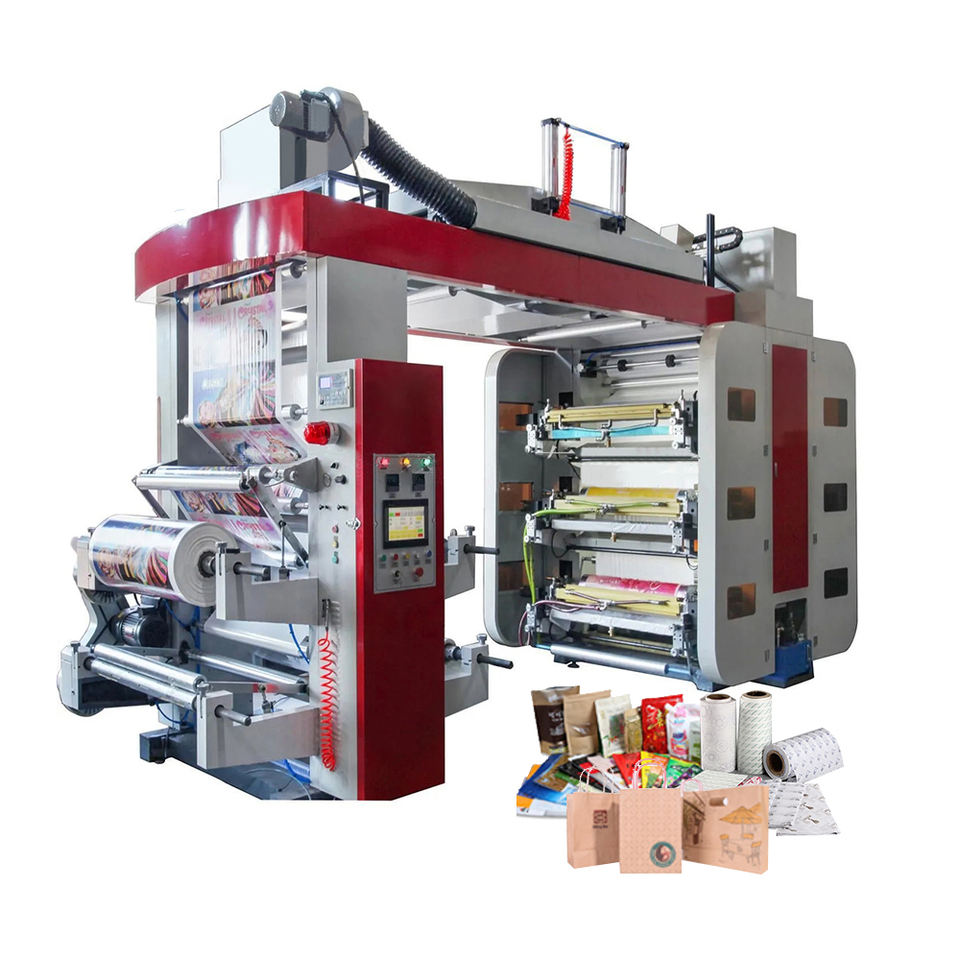

YTB-6600/800/1000/1200 High Speed 6 colors Flexographic Printing Machine - Film Blowing Machine_Bag Making Machine

Feature:

1.1 Ink Roller :With the Ceramic roller by 100LPI-1000LPI, high speed dot reproduction rate,

screen printing, structure three–dimensional sense of strong ,registering accurately

1.2 Ink :Adopt the automatic circle system ,running ink by single small motor

1.3 Timing :Adopt Japanese inverter controlled ,running by small fluctuations

1.4 Unwind EPC :adopt the high quality automatic EPC controller device

1.5 Unwind and rewind way : adopt the magnetism Auto tension controller.

1.6 Ink way :our company has special design for the doctor blade device with the ink pump can suck the ink automatically

1.7 Up and down plate :adopt the hydraulic pressure rising and down the printing plate automatically

1.8 Roller :adopt the special steel processing ,and through the special technique treatment , and plating thickness of 10 silk

protective layer of hard chromium, beat the following in the 0.02mm

1.9 Traction Rollers :adopt Japanese production of small semi-enclosed bearing, static equilibrium and dynamic levels do cross-processing, hard oxidation treatment, resistance, beating a small

1.10 Drying device: ventilation with heat blowing three devices, which use a central heating temperature control system and

the control each group

1.11 Body: thick wall (75mm), longer bridges, thick base, making the machine more stable.

1.12 The control system: machine adopts PLC device: 1) start,2) stop,3) run,4) automatically transported down the ink, with

PLC control, automation and better, more humane facilities.

2.Main Specification

2.1 Main Parameter
Model	YTB-6600/6800/61000
Max Width of Material	600mm/800mm/1000mm
Max.Width of Printing	560mm/760mm/960mm
Material	Non-woven fabric:15-120g,Paper:15~400g/m2 Aluminum foil:30~150μm,Woven Fabric Material:15-500g/m2,PVC:15~120μm,OPP:10~100μm, BOPP:10~100μm,PE:15~150μm,NY:15~120μm, PET:15~100μm,CPP:15~100μm
Printing color	6 colors
Max.Length of Printing	200-1100mm
Machinery mechanical speed	10-90m/min
Max.Speed of Material Printing	10-70m/min
Thickness of Plate	2.38mm
machine weight	600-7000Kg
machine dimension	5.2m×2.2m×3.3m/5.2x2.4x3.3m/5.2x2.6x3.3m
Power condition	Voltage:380V,3PH,50HZ
2.2 Unwind Unit
Max.Length of Roller	1000mm
Max.Width of Printing	560mm/760mm/960mm
Max.Dia. of Unwind	￠1000mm
Type of Unwind	auto tension with magnetic powder
Unwinder Magnetism device	5kg
Auto Tension Controller Unwinder	2—20kg
Unwinder EPC	Electrical Edge Correction Device
Feeding shaft	Air shaft
Axis core diameter￠	76mm
2.3 Traction Unit
Constitution of Traction	Aluminum roller, Chrome plated Roller
Traction Zones	6 Zones
2.4 Printing Unit
Constitution of Printing	Anilox roller, Rubber roller, Chrome plated roller, Version roller Resin version, Scraper
Girth of Pressing Roller	200-1100mm
Material of Plate	Resin or Rubber
Principle of Work	Gears Drive
Adjusting of Register	Manual
Overprint Precision(mm)	Horizontal:+-0.15mm,Vertical:+-0.2mm
Plated-glued roller adjusting	hydraulic type of plate-cylinder
Anilox Roller	Ceramic Anilox Roller:1 pcs/per color
Rubber rollers	1 pcs/per color
Scraper	Ordinary
2.5 Heating and Drying Unit
Type of Heating and drying	blowing first then heating
Heating Zones	12zones
Power of Heating	15 kw
Assistance of Drying Length	2m
Blowers	10Fans
Power of Blowers	1.5kw×2pcs 0.2kw×8pcs
2.6 Electrical Parts
Main motor	7.5kw
Ink-Transfer Motor	0.2kw
The inverter	7.5kw (An Inverter Equips With the Main Motor)
Tension test	2--30kg
2.7 Wind Unit
Max Width of Material	1000mm
Max.Dia of Wind	￠1000mm
Type of Wind	Auto tension with magnetic powder
Rewinder Magnetism Powder	5kg
Collect Reducer Motor	2.2KW
Auto tension controller	2—20kg
The receiving shaft	Air shaft
Axis core diameter	￠76mm
