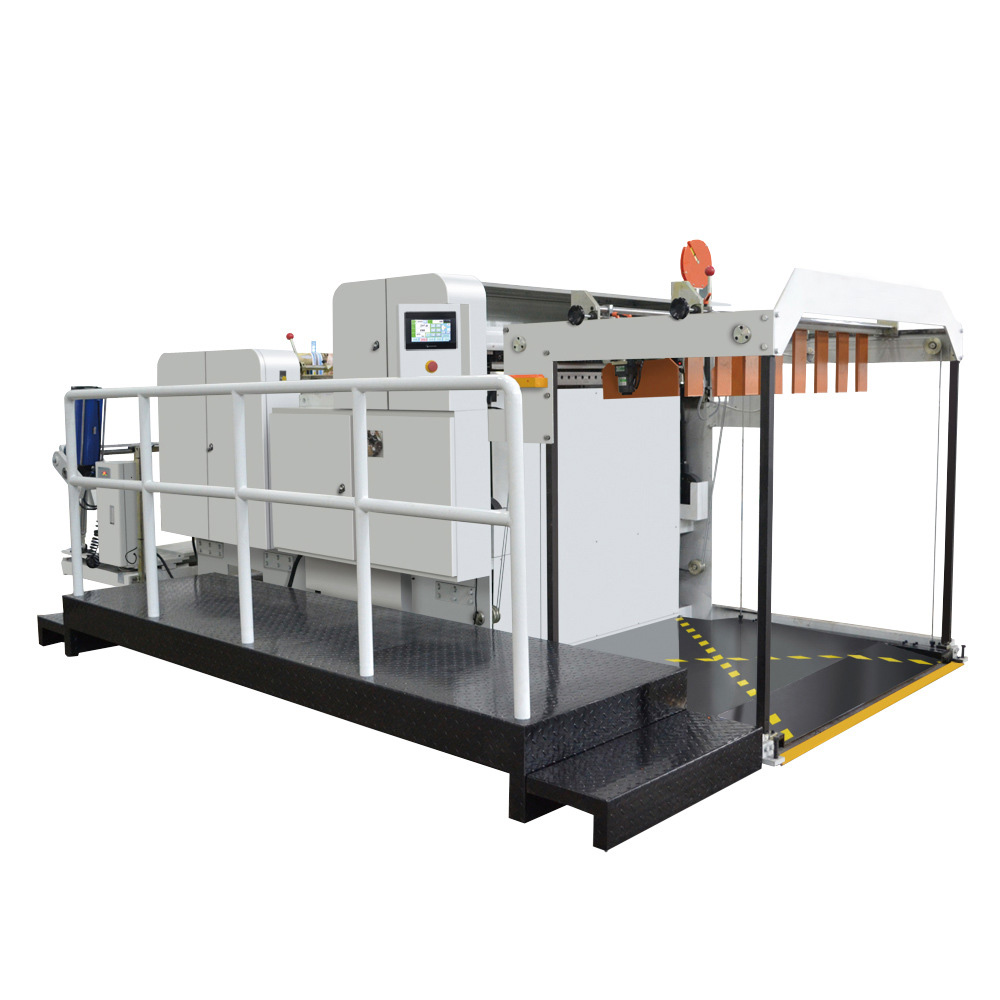

HQ-800-1700B High Speed Auto Stacking Roll to Sheet Cross Cutting Machine

Usage:

This machine is specialist for horizontal and vertical cutting paper rolling materials to small sheet.

Performance and Characteristics

1)Adopts pneumatic automatic materials loading system with much easy operation  and convenience.

2)Adopts down-up recurrent cutting with orderly finished products and without water caltrop;meantime,it can be

used for horizontal cuttingand vertical cutting at one time

3)It adopts servo motor for controlling constant-length cutting.

4)It adopts PLC control, contact screen operation.

5It adopts pneumatic, displacement sensor for controlling transmission system, with photoelectric, gas together, it has the

function of easy operation, high precision, good  stability, low noise.

6)This machine has the function of the frequency converter timin device, automatic counting, stop working by alarm ,

magneticpowder tension control, can be vertically, adopt blower fan to get rid of waste.

7)It has the functions of high-precision of cuttinghigh speed,etc. pneumatic structure combined with computer control

be adopted for transmission section ,making it become much more steady operation.

8)It has the function of automatic stacking which is in order . Photoelectric auto tracing subtense system.

Main Technical Specification

Model

HQ-1100B

HQ-1400B

Max. Unwind diameter

1400mm

1400mm

Paper thickness

40-500g

40-500g

Effective cut width

1100mm

1400mm

Cut length

20-1200mm

20-1200mm

Cut speed

10-150times/min

10-150times/min

Cutting precision

±0.2mm

±0.2mm

Power condition

380V, 50HZ or according to customer request

Total power

8.5kw

9.5kw

Weight

3500kg

4200kg

Dimension

4000×1900×1500mm

4200×2200×1500mm

Main function

1.1 roll material loading; 2.Round cutter for slitter;

3.EPC and photo-sensor.
