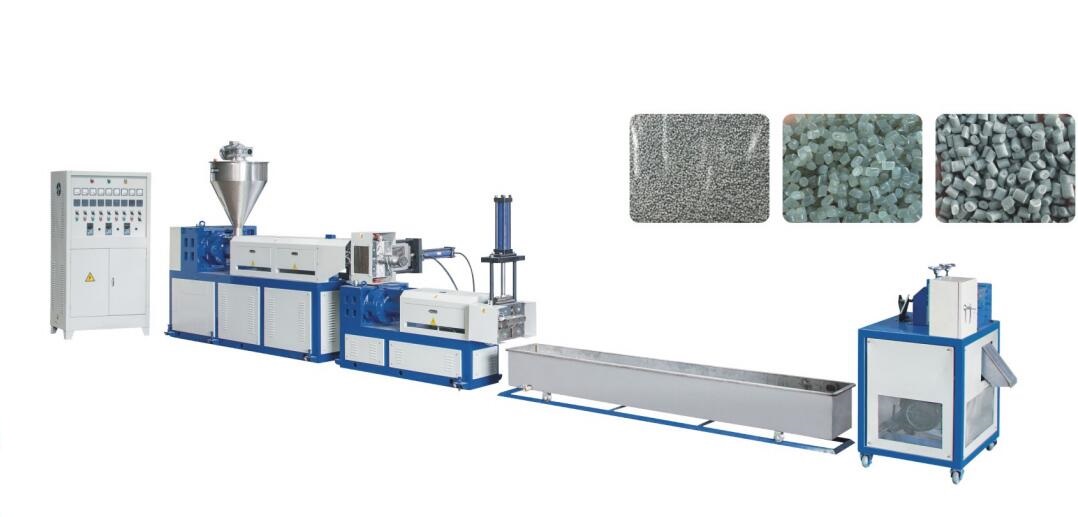

SJ100/120/130/140/160/180 Double stage water cooling recycle granulator machine 200-400KG/H
SJ100/120/130/140/160/180 Double stage water cooling recycle granulator machine 200-400KG/H
SJ100/120/130/140/160/180 Double stage water cooling recycle granulator machine 200-400KG/H
SJ100/120/130/140/160/180 Double stage water cooling recycle granulator machine 200-400KG/H
Categories: Recycle Granulator Machine
suitable for HDPE, LDPE, LLDPE, EVA, PP, ABS, PS,etc.
Tel: 0086 577-66817170
Mobile: 0086 15858567170
Email: rahsjx@rahsjx.com
Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA.
Product Details :


[1].Feature:

This machine suitable for PE, PP waste film recycle, and then granulator int granules;

Machine with safety shield, more safety operate and temperature more stable;

Finished granule can mix with new material use, it can save factory cost.

[2].Main technical specification:

Model

SJ140/130

SJ160/150

Main screw diameter

140mm

160mm

Main screw L/D ratio

22:1

22:1

Main screw/barrel material

38CrMOLA,800-900HV

38CrMOLA,800-900HV

Main screw heating ring

Ceramic heating ring

Ceramic heating ring

Feeding way

Force feeder

Force feeder

Sub-screw diameter

130mm

150mm

Sub-screw L/D ratio

10:1

10:1

Screw speed

10-100r/min

10-100r/min

Sub-screw/barrel material

38CrMOLA,800-900HV

38CrMOLA,800-900HV

Main gear box(reducer)

250# hard teeth gear

250# hard teeth gear box

Sub-gear box(reducer)

173# hard teeth gear

180# hard teeth gear box

Main motor

37KW

55KW

Sub-motor

15KW

18.5KW

Cutting motor power

2.2KW

2.2KW

Temperature control box

10zone (main extruder:7unit; sub extruder 3unit)

Output capacity

130-150KG/H

210-260KG/H

Weight

4500kg

6000kg

Dimension

2.4×2M

7.5×2.5×2.2m
