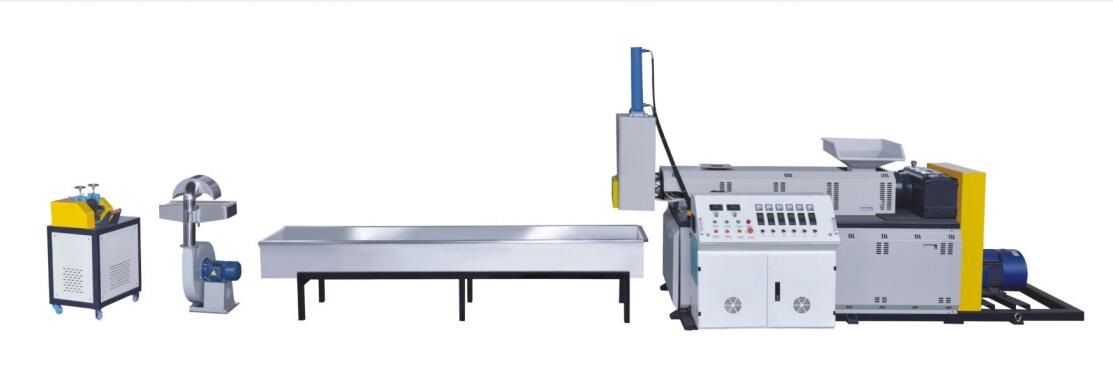

SJ100/110/120/130 Single screw Water Cooling Pelletizer Recycle machine

Home > Recycle Granulator Machine

SJ100/110/120/130 Single screw Water Cooling Pelletizer Recycle machine
SJ100/110/120/130 Single screw Water Cooling Pelletizer Recycle machine
Categories: Recycle Granulator Machine
Tel: 0086 577-66817170
Mobile: 0086 15858567170
Email: rahsjx@rahsjx.com
Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA.
Product Details :


[1].Feature:

1)It is well proportioned and equipped with exhausting and filling device;

2) It can fully remove the moisture and volatile gas in the raw material.

3) It bring out ample granules in perfect appearance.

4) One times granule making can fulfill the master batch craft and technology requirements.

5) It can make different screw, heating and cooling system according to material parameter.

[2].Application:

1)It is applicable for various plastic organic and inorganic filling.

2) It can process the PE and PP plastic waste film recycle.

3) It can mix different kind of material together, such as ABS alloy material, EVA foaming material, PP, PE color master batch, TPU and POE ,etc.

[3].Main specification:

Model

SJ-120

SJ-160

Screw diameter

120mm

160mm

Screw L/D ratio

22:1

25:1

Screw speed

30-120r/min

30-120r/min

Barrel material

38CrMOLA

38CrMOLA

Main motor

37kw

55kw

Cutting motor power

1.5kw

2.2kw

Heating power

15kw

28kw

Max. Output capacity

80-100kg/h

200-220kg/h

Weight

3000kg

5000kg

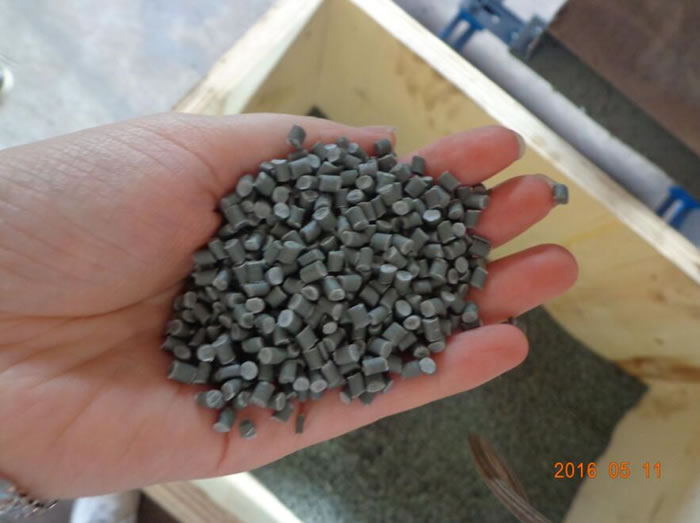

[4] granule product
