WQ-600 Computer PE roll Apron Making Machine

1. Feature:

1).this machine special designed for the point off with volume aprons machine.

2)it use computer control step motor(servo motor) setting length system to make the sealing and cutting size with less error.

3)Fitting with electric eye tracking to make the location of printing the pattern precision.

4) it can choice the computer numerical control to adjust the apron length, if the printing have problem, the machine will be automatic stop work and alarm.

2. Useful:

1).this machine main make the HDPE, LDPE disposable aprons, it is widely supply to supermarket and families.

3.Main technical specification

Model

WQ-600

Max. Apron width

500mm

Max. Apron length

1500mm

Film thickness

0.009-0.15mm

Producing speed

20-80pcs/min

Main motor

1.5KW

Power supply

220V /50Hz/single phase

Machine weight

900KG

Overall dimensions

3.8×1.2×1.5M

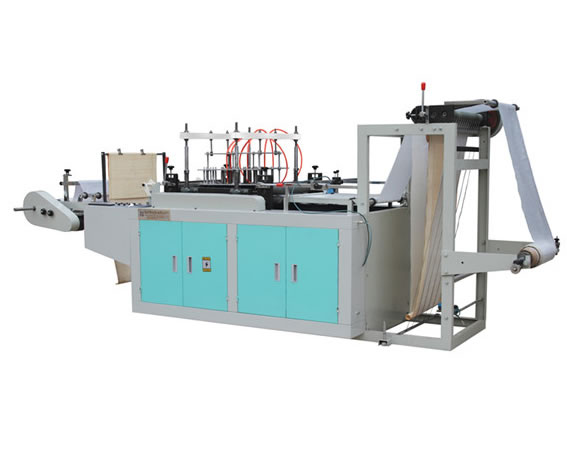

4.product picture
