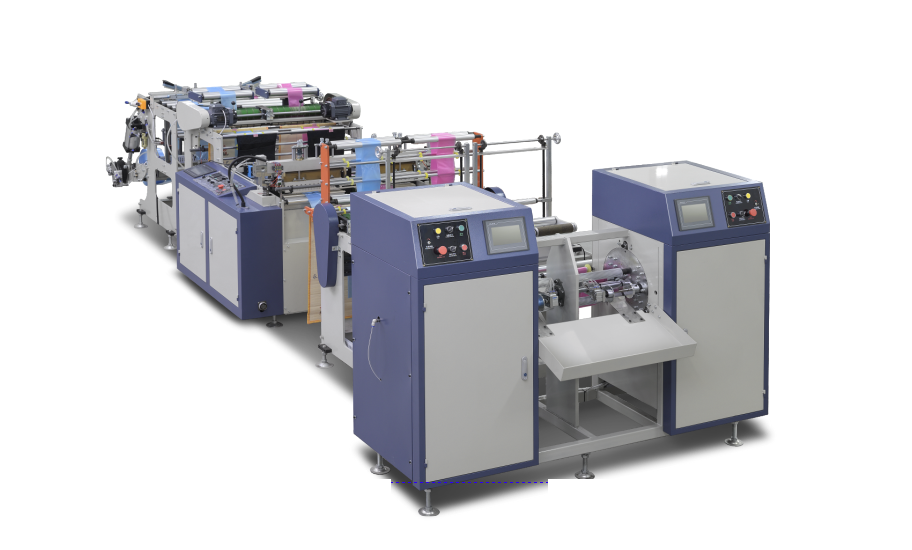

HSLJ-400x2G Automatic 2lines Coreless Roll Garbage Bag Making Machine
| HSLJ-400x2G Automatic 2lines Coreless Roll Garbage Bag Making Machine |
| Categories: Bag Making Machine |
| Tel: 0086 577-66817170 |
| Mobile: 0086 15858567170 |
| Email: rahsjx@rahsjx.com |
| Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA. |
1.Feature:
The HDPE\LDPE bags by this machine are applying to supermarket shopping and garbage bag.
2.Performance and Characteristics
1)The machine is specially designed for point-off 8 fold continuous-rolled L-type bag making machine.
2)The machines use computer-controlled step(servo) setting length system to make the sealing size with less error.
3)Device electric eye to track the precise location of the pattern of the printed bags.
3.Main Technical Specification
|
Model |
HSLJ-400×2G |
|
Max.bag width(folded) |
50-250mm×2 rows |
|
Flat bag width(open) |
1000mm |
|
Max.bag length |
200-100mm (computer setup) |
|
Bag cutting speed |
90-180pc/min× 2 line |
|
Working line |
1-2 lines |
|
Single layer film thickness |
0.01-0.05mm |
|
Cutting precision |
0.5mm |
|
Voltage |
220V, 50HZ,single phase |
|
Main motor |
1.5KW |
|
Total power |
11KW |
|
Weight of machine |
2000KG |
|
Install dimension |
5700x1200x1600mm |
-
