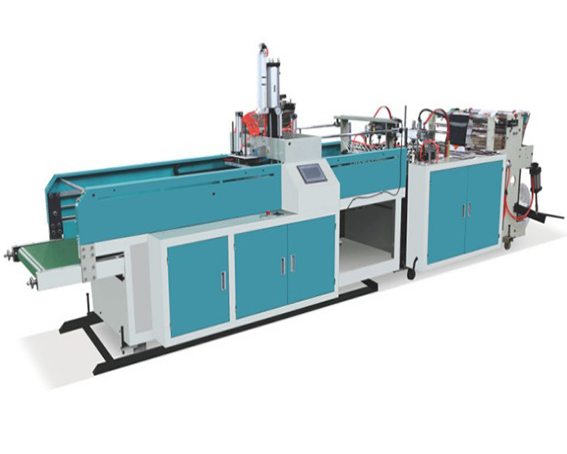

HSRQ-600G High speed Automatic Single line T-shirt Bag Heat Cutting Machine


1.Feature:

1)This machine is applied to manufacture and printing the uncolored vest bags made of HDPE, LDPE roll film.

2)It adopts PLC computer control, servo motor fixed length, photo-sensor tracking, static elimination, host frequency control, automatic counting, automatic discharge, high parking.

3) It is of high speed degree of automation and good economic result., can both suitable for color bag, blank shopping bag making.

4)adopt automatic punching function, increase vest bag making speed and save labor.

2. Main Technical Specification

Model

HSRQ-600G

Bag making width

100-550mm

Bag making length

370-1000mm

film thickness

0.01-0.1mm

Max.Bag making speed

100-220pcs/min (depend on bag length)

Air pressure request

7.5HP

Voltage

220V,Single phase 50HZ

Main motor

1.5KW

Total power

9KW

Gross weight

1500KG

Overall dimension

5500×1400×1600mm

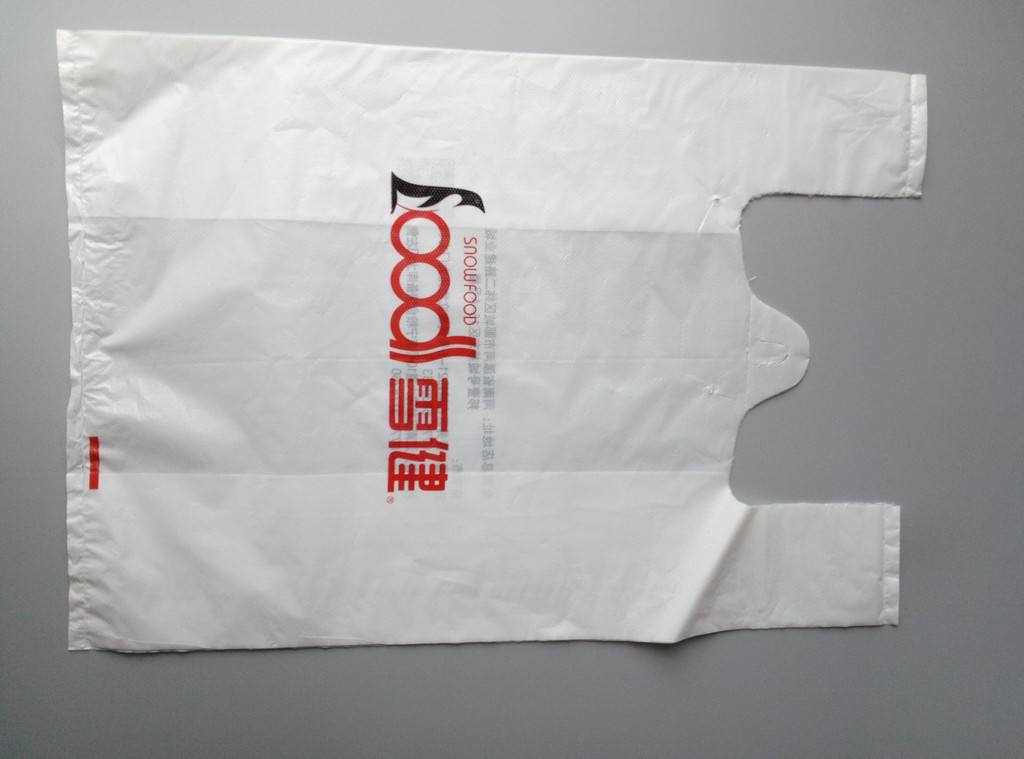

3. bag sample show
