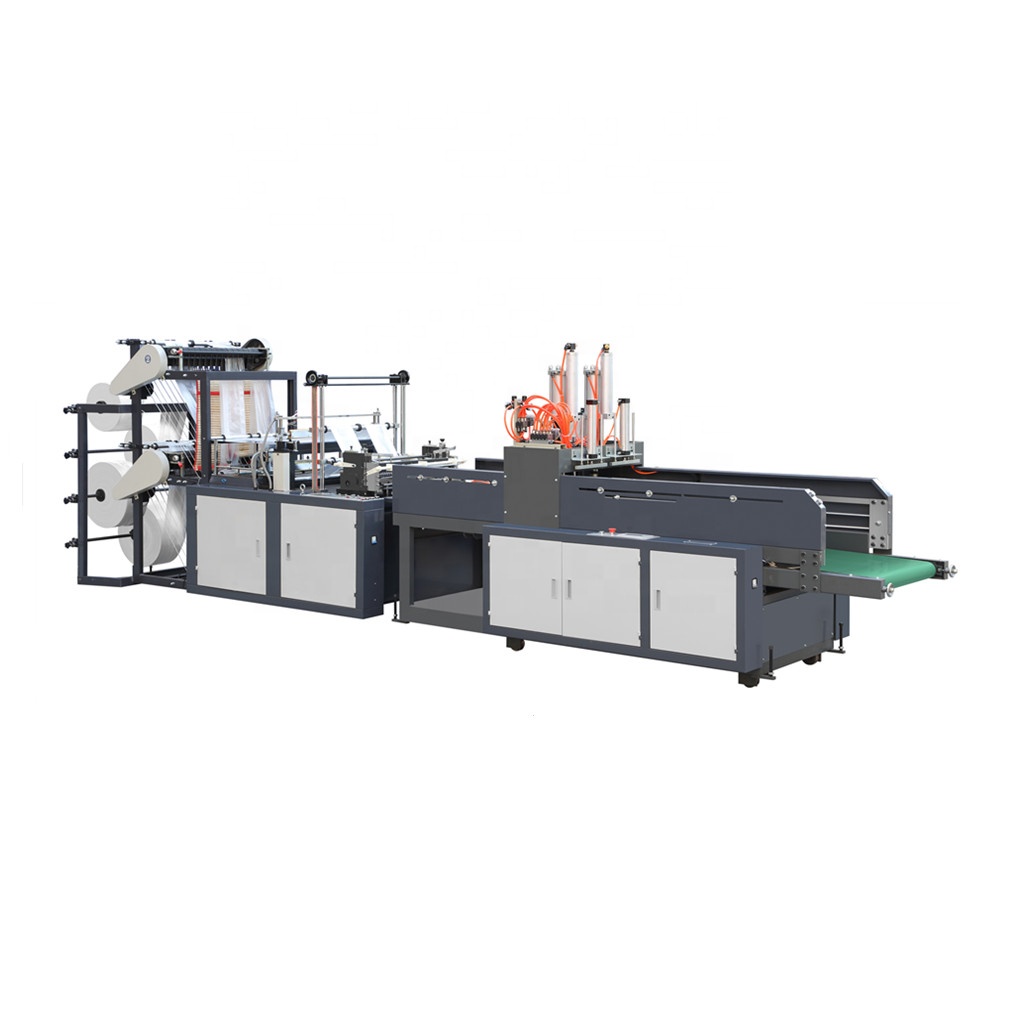

HSL-600-1200 Full Automatic Heat Sealing Cold Cutting T-Shirt Bag Maker Machine

Home > Bag Making Machine

HSL-600-1200 Full Automatic Heat Sealing Cold Cutting T-Shirt Bag Maker Machine
HSL-600-1200 Full Automatic Heat Sealing Cold Cutting T-Shirt Bag Maker Machine
Categories: Bag Making Machine
Tel: 0086 577-66817170
Mobile: 0086 15858567170
Email: rahsjx@rahsjx.com
Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA.
Product Details :

Feature:

1.1 This machine is applied to manufacture and printing the uncolored vest bags made of HDPE, LDPE roll film.

1.2 It adopts computer control, stepper motor fixed length, photo-electric tracking, static elimination, host frequency control, automatic counting, automatic discharge, high parking.

1.3 LCD screen shows real time, from feed- back cover-cut-blurted-conveying automatic running.

1.4It is of high degree of automation and good economic result., can both suitable for color bag, blank shopping bag making.

1.5 adopt automatic punching function, increase vest bag making speed and save labor.

Main technical specification

Model

HSLQ-600

HSLQ-800

HSLQ-1000

Cutting width

150-250mm×4

150-350mm×4

150-450mm×4

Cutting length

200-800mm

200-800mm

200-800mm

Bag making speed

20-120 pc/min×4

Work line

1-4lines

1-4lines

1-4lines

Power

1.5kw

2.2KW

3kw

Gross weight

1300kg

1400kg

1600kg

Install dimension

5.3×1.2×1.9m

5.3×1.4×1.9m

5.3×1.6×1.9m

bag picture show

t shirt and flat bag
