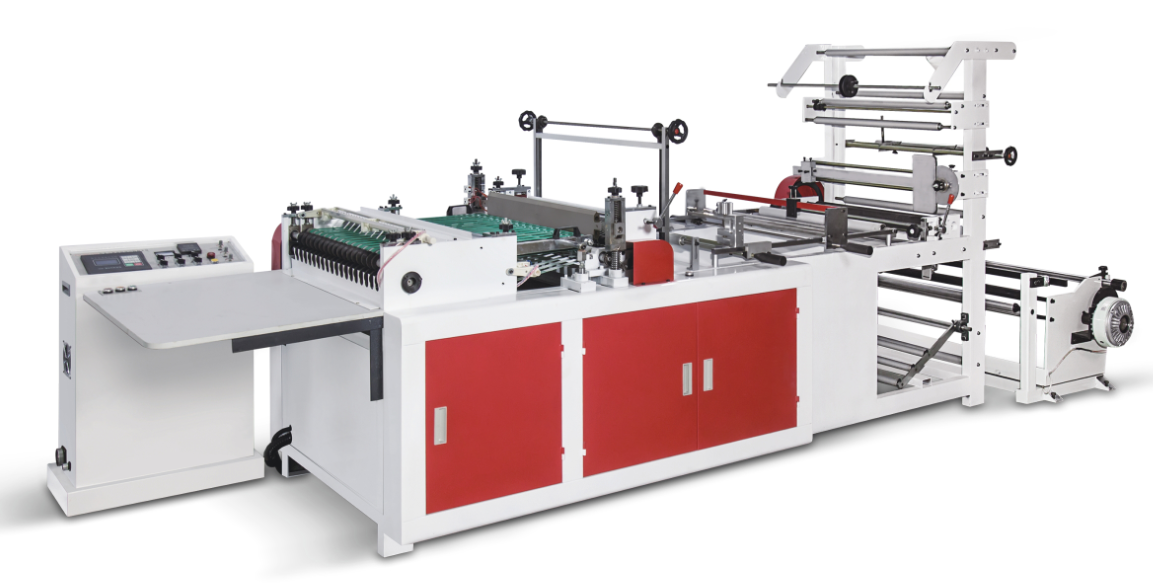

RQL-500-1500 Computer Control Side Sealing Hot Cutting Bag Making Machine

Home > Bag Making Machine

RQL-500-1500 Computer Control Side Sealing Hot Cutting Bag Making Machine
RQL-500-1500 Computer Control Side Sealing Hot Cutting Bag Making Machine
RQL-500-1500 Computer Control Side Sealing Hot Cutting Bag Making Machine
Categories: Bag Making Machine
Tel: 0086 577-66817170
Mobile: 0086 15858567170
Email: rahsjx@rahsjx.com
Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA.
Product Details :

1.Feature

1.1 Adopt electrical integration, computer length setting, photoelectrical tracking, etc.

1.2 Suitable for making heating sealing and bags that take PP, BOPP, HDPE, LDPE as raw material.

1.3 Suitable for packing cloth, hardware,plastic production, stationery, food and household things, etc.

2.Main Technical Specification

Model

RQL-700

RQL-800

RQL-900

RQL-1000

Max. Width

700mm

800mm

900mm

1000mm

Max. Cut length

50-700mm

50-800mm

50-900mm

50-1000mm

Max. Bag width

680mm

780mm

880mm

980mm

bag make speed

40-240pcs/min

40-240pcs/min

40-240pcs/min

40-240pcs/min

Total power

3.6kw

3.8kw

4.5kw

4.7kw

Weight

900kg

1000kg

1100kg

1200kg

Dimension

3.5×1.1×1.8m

3.5×1.2×1.8m

3.5×1.3×1.8m

3.5×1.4×1.8m


3.Finished product
