1.Application

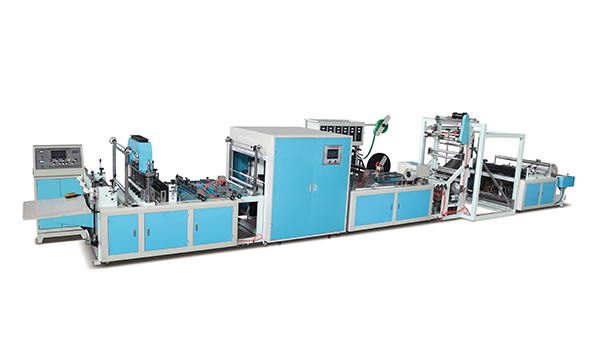

1)This machine is suitable for non woven fabric material .

2)It can automatic make non woven bag products with different bag type and size, as handle attached bags, T-shirt bags (vest bags), box bags, flat bags, drawstring bags and so on.

3) non woven fabric bag product widely used in clothing, footwear, wine, gifts packaging etc.

2.Features:

1)adopts Taiwan brand touch screen computer display, PLC computer program. Auto meter counting &stopping, could freely setting number.
2)Computer Fixed-length, printing color mark track orientation, Auto-stop when complete.
3)High voltage static processor, Auto constant temperature heating controller.
4)This machine has the function of automatic punching;Unwinding magnetic powder tension control with manual, Auto side-correction control.
5)machine adopt ultrasonic welding of all aspects, bag mouth folding welding, side sealing, once full completed, fast speed, easy to operate save labour.

6) when make t-shirt bag, can connect auto punching system with machine together or separate use manual punching machine make t-shirt bag.

3.Bag Type：

1]--------D-cut flat bag , D-cut side gusset bag，D-cut bottom gusset bag

2]--------T-shirt bag

3]--------soft loop handle box bag

4]-------- drawstring bag(add string)=shoes bag

5]-------- flat handle bag
