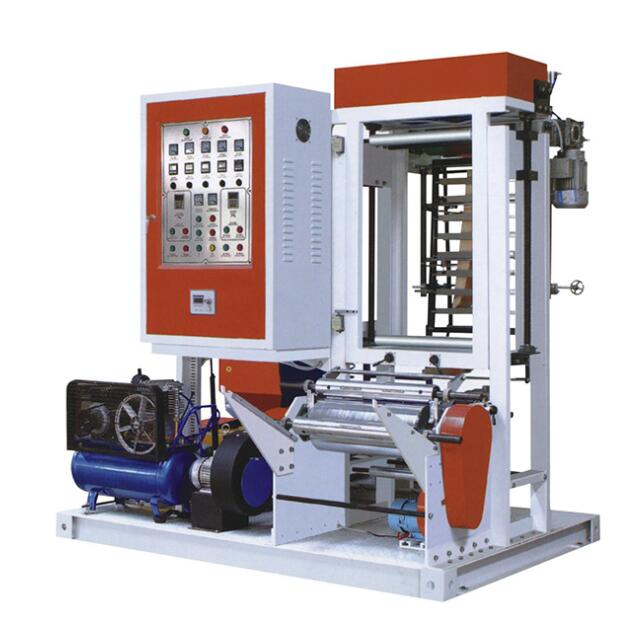

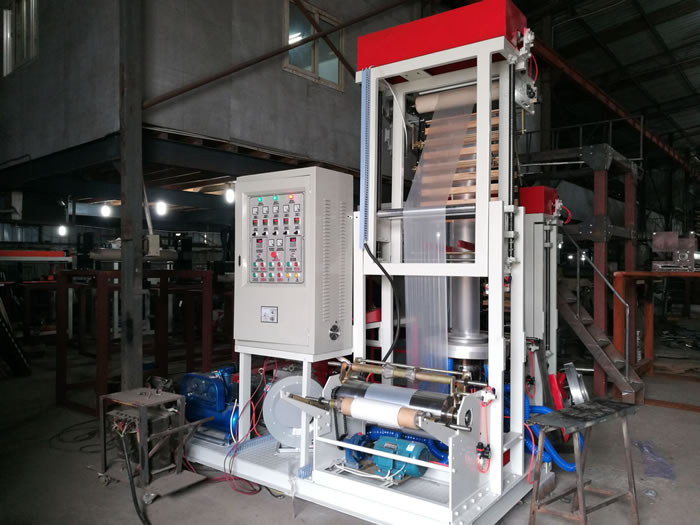

SJ50-400/500/600 Mini Type PE Film Blowing Machine
| SJ50-400/500/600 Mini Type PE Film Blowing Machine |
| Categories: PE Film Blowing Machine |
| Tel: 0086 577-66817170 |
| Mobile: 0086 15858567170 |
| Email: rahsjx@rahsjx.com |
| Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA. |
1.Feature:
1.1 The machine take the HDPE or LDPE as raw material, through heating, extrusion, blowing, stretch, winder
and final be roll thin film.
1.2 The finished plastic thin film is widely used for supermarket bag, garbage bag, various plastic package
bag, farmland film.cote film and compound thin film.
2.Main technical specification：
|
MODEL |
SJ50 |
SJ50 |
|
Screw diameter |
Ф50 |
Ф50 |
|
Screw L/D ratio |
28：1 |
28：1 |
|
Screw speed |
15-100r/min |
15-100r/min |
|
Main motor |
11kw |
11kw |
|
Output capacity |
20kg/h |
30kg/h |
|
Die head |
Ф60 |
Ф60 |
|
Film thickness |
0.008-0.08mm |
0.008-0.08mm |
|
Film width |
500mm |
600mm |
|
Total power |
22kw |
25kw |
|
Dimension |
2.5×2.2×2.8m |
2.5×2.2×2.8m |
|
Gross weight |
1300KG |
1500KG |
-
