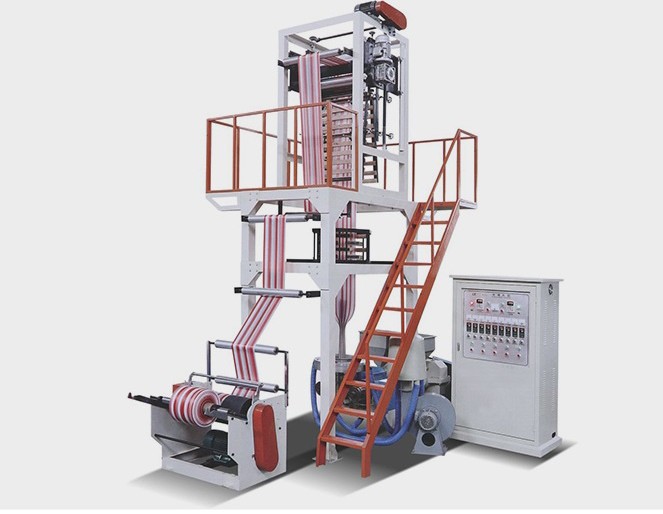

SJ45x2/50x2/55x2 Double Colos Strip PE Film Blowing Machine - Film Blowing Machine_Bag Making Machine

1.Feature:

1.1 It is used for blowing various low density polyethylene and high density polyethylene color striped plastic film, etc.

1.2 Which are widely used for packing food, fruit, garment, textile, daily necessities and other civil and industrial products.

1.3 The cylinder and the screw stem of model SJ-45X2 extruder are made of high quality alloy steel with optimum hardness are strong corrosion resistance after precision

finishing and nitrogen treatment.

1.4 auxiliary machine can be freely adjusted with the limits of 600mm according to the technological requirements of different

materials, and has been fitted with a plug in plastic motor to keep proper tension and make rolling even and roll changing easy.

2.Main technical Specification

Model	SJ45×2	SJ50×2	SJ55×2
Screw diameter	φ45mm×2	φ45mm×2	φ45mm×2
Film width (mm)	100-600	200-800	300-1000
Film single layer thickness(mm)	0.01-0.10	0.01-0.10	0.01-0.10
Output capacity(kg/h)	40	55	70
Screw L/D ratio	26:1	26:1	26:1
Main motor(kw)	15	18.5	22
Traction motor(kw)	1.1	1.1	1.5
Heating power(kw)	15	18	25
Dimension	4.8×1.9×4.1m	5.5×2.1×4.5m	6.5×2.3×4.9m

color strips film
