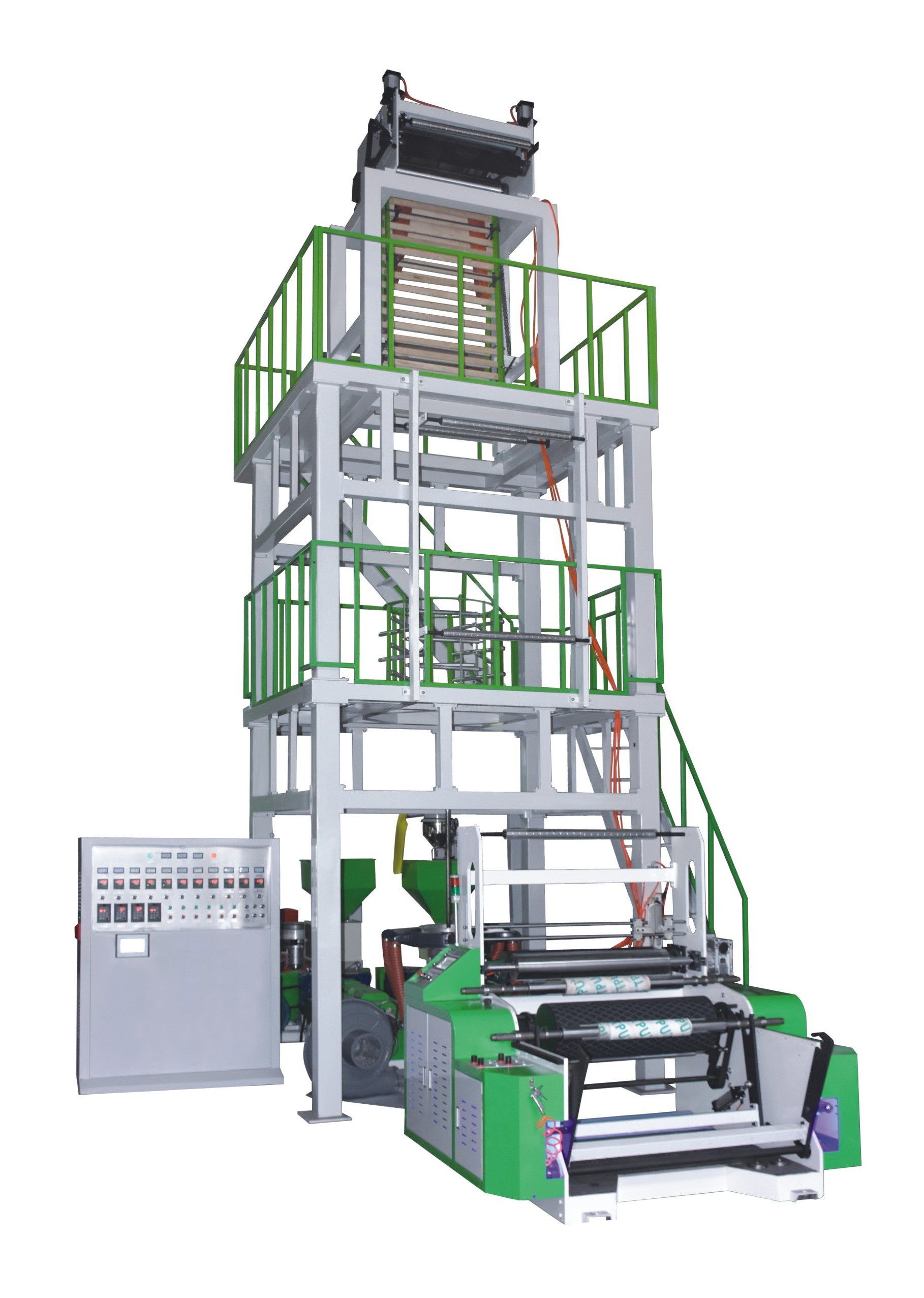

SJ45/50/55/60H High Speed Double screw 3 layers ABA type PE film blowing machine

Home > PE Film Blowing Machine

SJ45/50/55/60H High Speed Double screw 3 layers ABA type PE film blowing machine
SJ45/50/55/60H High Speed Double screw 3 layers ABA type PE film blowing machine
SJ45/50/55/60H High Speed Double screw 3 layers ABA type PE film blowing machine
Categories: PE Film Blowing Machine
Tel: 0086 577-66817170
Mobile: 0086 15858567170
Email: rahsjx@rahsjx.com
Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA.
Product Details :


1.Feature:

1)The double layer co-extrusion laminated film can prolong the length for preservation of liquid package.

2)The cylinder and the screw stem of the extruder are made of high quality alloy steel with optimum hardness and durable service after precision finishing and nitrogen treatment.

3)The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring.

4)Double rolling and double cutting coiling unit adopts torque motor to keep proper tensions and make rolling even and roll changing easy.

5)It special for HDPE t-shirt shopping bag film making. Support mix recyclable material, fill material together for blowing high transparent film.

2. Main Technical Specification

Model

SJ45/50-800H

SJ50/55-1000H

Suitable material

HDPE or LDPE, LLDPE

HDPE or LDPE, LLDPE

Screw diameter

45mm×1set;50mm×1set;

45mm×1set;50mm×1set;

Screw L/D ratio

28:1

28:1

Film max. Width

800mm

1000mm

Film thickness

0.009-0.15mm

0.009-0.15mm

Max. Output capacity

80-100KG/H

100-120KG/H

Average power consumption

55kw

70kw

Gross weight

2800KGS

2800KGS

Dimension

5200×2800×6500mm

5500×3000×7500mm

Power condition

380V, 50Hz, 3 phase

380V, 50Hz, 3 phase
