1.Feature:

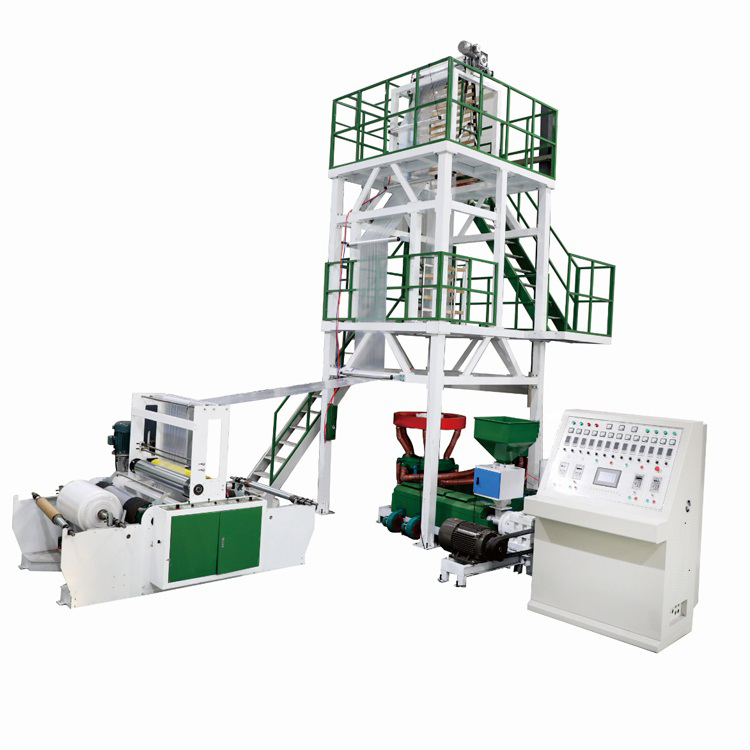

1.1 The machine take the HDPE or LDPE as raw material, through heating, extrusion, blowing, stretch, winder and final be roll thin film.
1.2 The finished plastic thin film is widely used for supermarket bags,garbage bags,various plastic package bags, shopping bags,cote film and compound thin film.
2. Main technical specification
|
Model |
SJ50-600H |
SJ55-800H |
SJ60-1000H |
SJ65-1200H |
|
|
Suitable material |
HDPE/LDPE/LLDPE |
||||
|
Film width |
600mm |
800mm |
1000mm |
1200mm |
|
|
Film thickness |
HD:0.008-0.12mm |
||||
|
Output capacity |
70-80kg/hr |
80-100kg/hr |
80-120kg/hr |
900-140kg/hr |
|
|
Extruder unit |
|||||
|
Gear box |
173# |
180# |
200# |
220# |
|
|
Screw diameter |
φ50mm |
φ55mm |
φ60mm |
φ65mm |
|
|
Screw L/D ratio |
30:1 |
30:1 |
30:1 |
30:1 |
|
|
Screw material |
38 CRMOALA |
||||
|
Barrel material |
38 CRMOALA |
||||
|
Barrel cooling unit |
180W×2 |
180W×2 |
250×2 |
250×3 |
|
|
Screw temperature |
3 |
3 |
3 |
4 |
|
|
Main motor |
15 |
18.5 |
30 |
37 |
|
|
die head unit |
|||||
|
Die head size |
φ60 |
φ80 |
φ100 |
φ120 |
|
|
Filter changer |
Standard manual |
||||
|
Temperature control |
2 |
2 |
2 |
2unit |
|
|
Air ring |
φ620mm |
φ760mm |
φ760mm |
φ760mm |
|
|
Fan blower |
3KW |
4KW |
4KW |
5.5KW |
|
|
Central stable bar |
1 PCS |
||||
|
Traction unit |
|||||
|
Traction roller |
700mm |
900mm |
1100mm |
1300mm |
|
|
Embossing roller |
600mm |
800mm |
1000mm |
1200mm |
|
|
Traction motor |
1.1kw |
1.5KW |
2.2KW |
3KW |
|
|
Traction speed |
10-80mpm |
10-80mpm |
10-80mpm |
10-80mpm |
|
|
Rewind unit |
|||||
|
Rewind way |
Surface friction rewind+automatic roll change system |
||||
|
Rewind roller |
700mm |
900mm |
1100mm |
1300mm |
|
|
Rewind motor |
1.5kw |
1.5kw |
1.5kw |
1.5kw |
|
|
Rewind speed |
10-60 |
10-60 |
10-60 |
10-60 |
|
|
Voltage |
380V, 50HZ, 3PHASE |
||||
|
Dimension |
4.8×2.2×6.2 |
5×2.4×6.2 |
5.5×2.6×6.5 |
5.5×2.8×6.5 |
|
