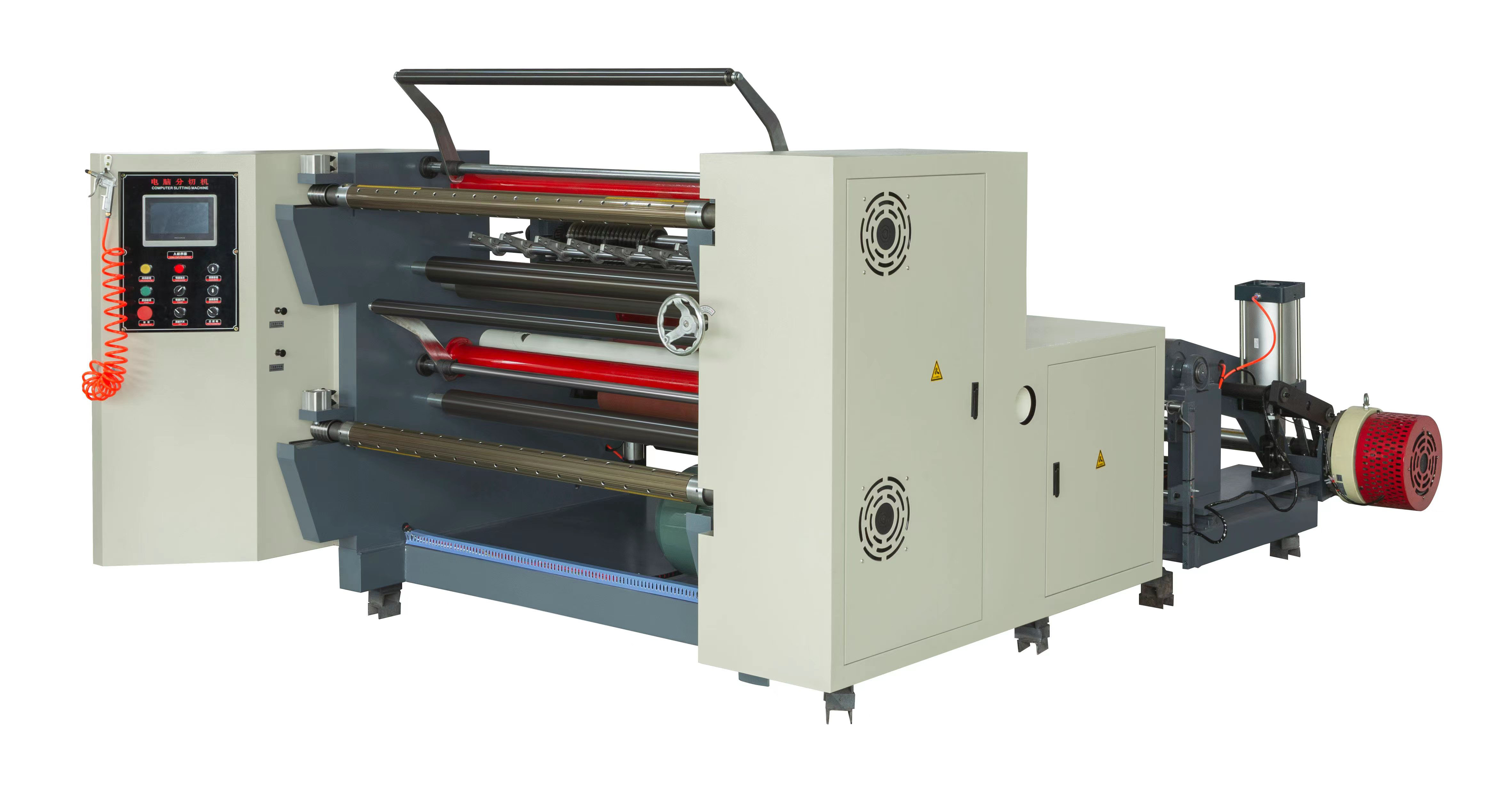

WFQ-1100/1300/1600A Computer Horizontal Type Slitting Rewinder Machine
WFQ-1100/1300/1600A Computer Horizontal Type Slitting Rewinder Machine
WFQ-1100/1300/1600A Computer Horizontal Type Slitting Rewinder Machine
Categories: Slitting Rewinder Machine
suitable for slitting PP, OPP,BOPP, PVC, PET, paper, nonwoven fabric roll to roll.
Tel: 0086 577-66817170
Mobile: 0086 15858567170
Email: rahsjx@rahsjx.com
Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA.
Product Details :

Application
This machine is suitable for separating and cutting such various roll materials as BOPP, PET,

CPP, CPE, PVC, aluminum foil and paper, etc. And can cut edge, separate and cut material

according to different requirements during production.

Feature
1. This machine install a round knife device, it can slit the rolls paper within 350g/ ㎡.

2. Independent master control screen, more flexible and even easier operation.

3. Automatic deviation-rectifying of releasing, photoelectric eye is suitable for tracking the edge and color of transparent

material.
4. Releasing tension adopts magnetic powder clutch control.
5. Rolling adopts magnetic clutch control.
6. Automatic slitter edge blowing-inhaling device.
7. Automatic meter counting of material moving length.

Main Technical Specification

Model

WFQ-1100A

WFQ-1300A

WFQ-1600A

Suitable material

Fabric, PP, BOPP, Paper, PE, aluminum foil,etc

Max. Unwind diameter

1000mm

1000mm

1000mm

Max. Unwind width

1100mm

1300mm

1600mm

Unwind paper core

76mm

76mm

76mm

Slitting width

25-1200mm

25-1300mm

25-1600mm

Machine speed

160m/min

160m/min

160m/min

Slitting speed

150m/min

150m/min

150m/min

Rewind diameter

600mm

600mm

600mm

Main motor

3.5kw

4kw

5.5kw

Cutting precision

±0.5mm

±0.5mm

±0.5mm

Total power

7.5kw

9kw

9kw

Gross weight

2000kg

2500kg

3000kg

Dimension

3.3×2.4×1.6m

3.3×2.6×1.6m

3.5×2.6×1.6m
