HSRW-500/600B Full Automatic Stretch Film/Cling Film Rewinder Machine - Film Blowing Machine_Bag Making Machine

1.Feature:

1. It is the latest style of stretch film rewinder in China. It is full automatically rewinding and cutting.

2. Adopt PLC touch screen. Guarantee the operation more correction and easy.

3. The speed is controlled system is: step motor + Inverter.

4. The main function is slit the jumbo rolls film into small rolls, and according to the rewinder can correct

the error layers of the production.

5. It is suitable for stretch film, cling film, fresh keeping film, and aluminum foil film, etc.

6. The production main used for packing, supermarket, hotel, restaurant, raw food, meat and sea food, etc.

7. Suitable for PE, PP,PVC film rewinder, with automatic change roll function.

2. Main Technical Parameter

Type	HSRW-600B	HSRW-500B
Suitable material	PP, PE, PVC stretch/cling film	PP, PE, PVC stretch/cling film
Width of finished products	100-600mm	100-500mm
Main motor	2.2kw	2.2KW
Machine working speed	150-400m/min	140-400m/min
Roll change model	Automatic change	Automatic change
Rewind model	Friction rewind	Friction rewind
Max. Unwind diameter	Φ400mm	400mm
Max. Unwind width	100-600mm	100-500mm
Core specification of parent roll	3'', 2'', 1''	3'', 2'', 1''
Max. Rewind diameter	Φ80mm	80mm
Rewind paper core diameter	according to customer request	According to customer
Weight	900kg	800kg
Install dimension	1.6×1.5×1.7m	1.6×1.4×1.7m

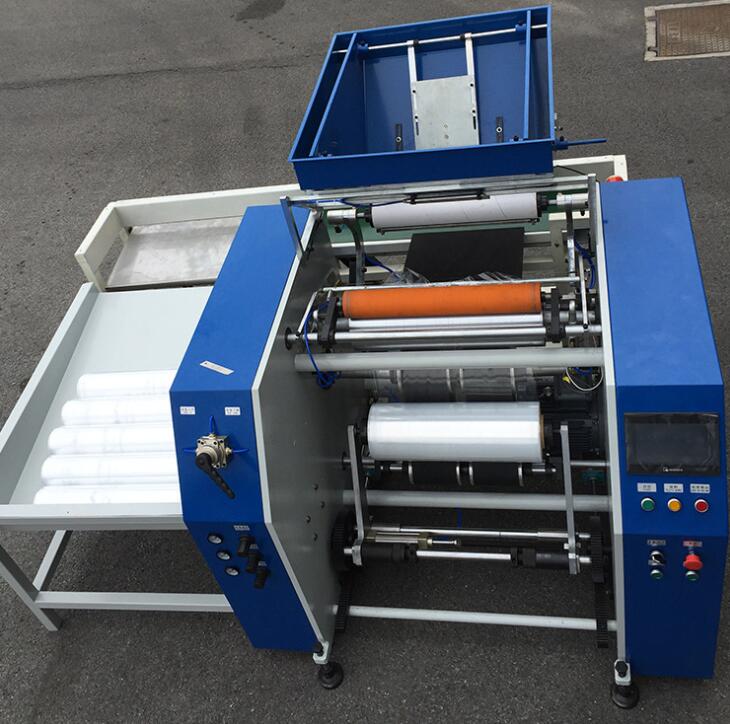

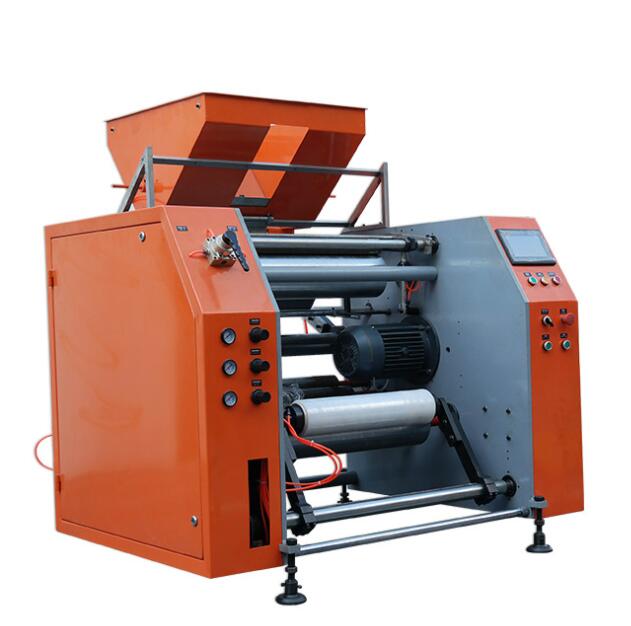

MACHINE PART PICTURE:
