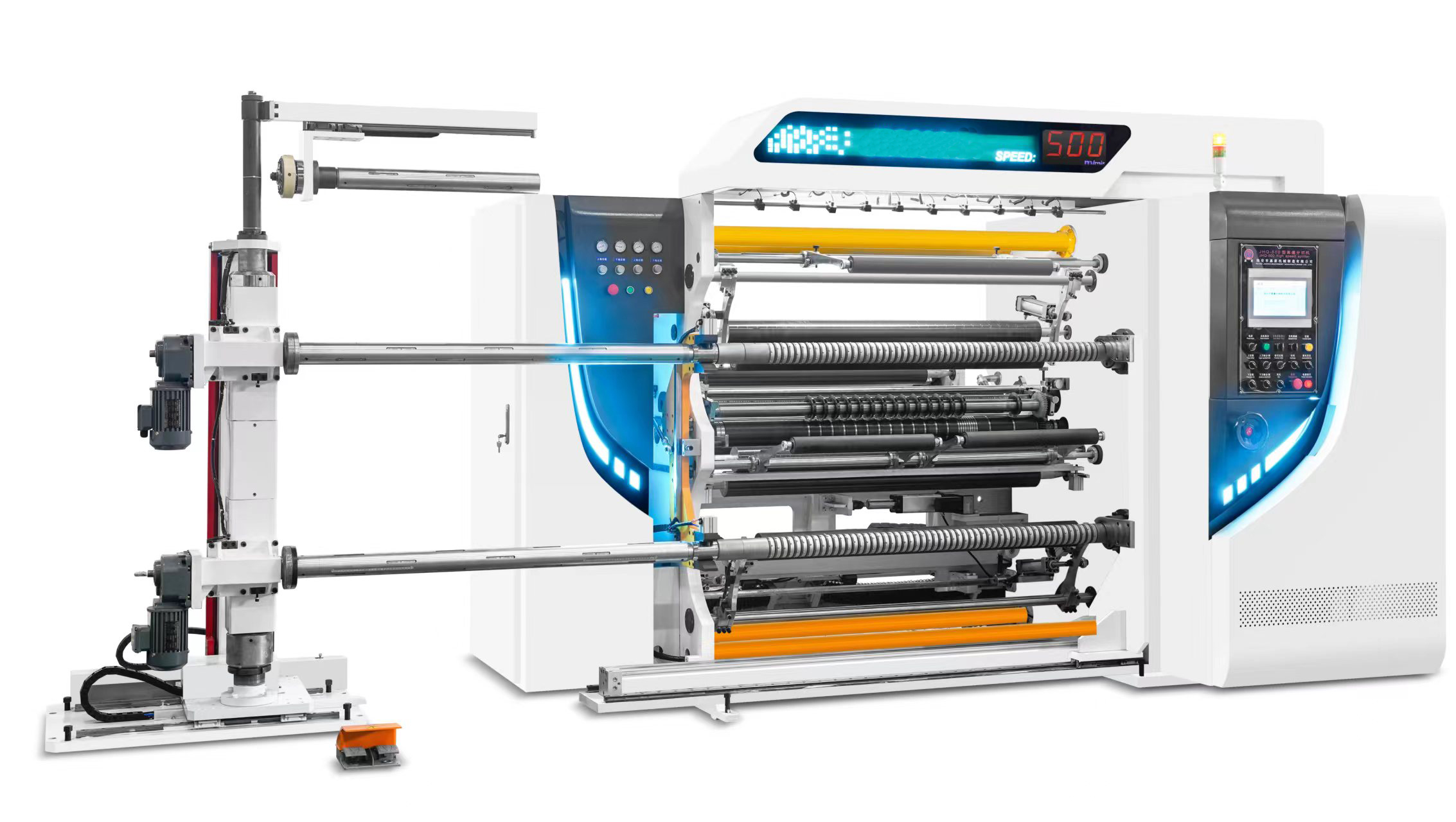

WFQ-1300/1600C High Speed 3 servo Motor Roll Slitting Rewinder Machine

WFQ-1300/1600C High Speed 3 servo Motor Roll Slitting Rewinder Machine |
Categories: Slitting Rewinder Machine |
Tel: 0086 577-66817170 |
Mobile: 0086 15858567170 |
Email: rahsjx@rahsjx.com |
Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA. |
1. Application
1.This machine is suitable for separating and cutting such various roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil and paper, etc. And can cut edge, separate and cut material according to different requirements during production.
2.Feature
1) This machine electrical part is controlled by PLC, according to slitting requirement, entering the parameter by touch screen, LCD screen show the working data, the controlling system is good in starting buffer,stopping tightly,length meter and so on, easily operation.
2) Full automatic tension control system in winding, keep the tension same all the time, or according to requirement to apply taper control.
3) The EPC applies made in Japan to trace automatically, no matter the edge or line, can keep the material always in right position.
4) The winding and rewind unit apply non-roller pneumatic loading or optional: hydraulic lift.
5) Main traction and rewind controlled by the 3 set vector inverter.
6) Rewinding tension controlled by PLC to change the parameter or rewind diameter digital type taper controlled automatic.
7) Rewind roller can divide into slip tension air shaft and slip friction control automatic, suitable for different thickness materials to slit in one time.
3.Main Technical Specification
Model |
WFQ-1600C |
Suitable material |
Paper:50-350g; plastic film:0.01-0.3mm |
Max. Unwind diameter |
Shaft-less loading with body:850mm; Separate shaft-less auto loading:1400mm (can choice) |
Unwind core diameter |
3’’ |
Max. Unwind width |
1650mm |
Slitting width |
40-1600mm |
Machine speed |
100-500m/min |
Max. slitting speed |
100-500m/min |
Round blade |
10PCS |
Max. Rewind diameter |
2shaft×¢600mm |
EPC range |
150mm |
Total power |
15KW |
Gross weight |
4000KG |
Install dimension |
3.6×2.5×1.9M |
-
