HSRW-500/600-1000 Stretch Film Slitting Rewinder Machine

Home > Slitting Rewinder Machine

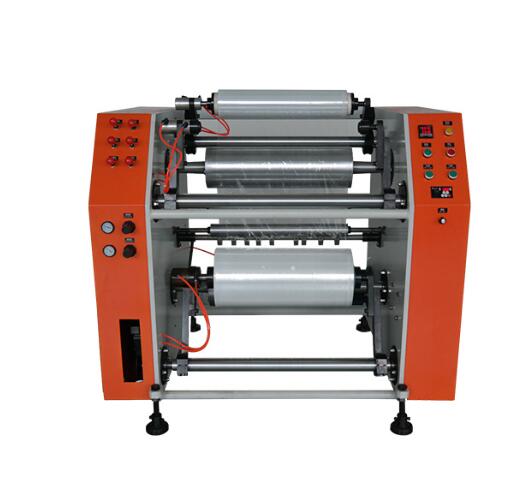

HSRW-500/600-1000 Stretch Film Slitting Rewinder Machine
HSRW-500/600-1000 Stretch Film Slitting Rewinder Machine
Categories: Slitting Rewinder Machine
Tel: 0086 577-66817170
Mobile: 0086 15858567170
Email: rahsjx@rahsjx.com
Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA.
Product Details :

Feature:

1. It is a kind of multi-functional machine integrated with slitting and rewinding.

2. It mainly slits large-sized or big roller stretch film into small ones, which avoids the split-level film and improves the technical index of product, such as level and appearance quality etc.

Main technical specification

Model

HSRW-500A

HSRW-600A

Width of Finished Product

500mm

600mm

Power of Motor

1.5kw

2.2kw

Design Line Speed

400m/min

400m/min

Roll Laying Mode

By hand

By hand

Max. Diameter of Parent Roll

400mm

400mm

Max. Width of Parent Roll

500mm

600mm

Core Specification of Parent Roll

3”

3’’

Max. Width of Sub-roll

500mm

600mm

Max. Diameter of Sub-roll

200mm

200mm

Core Specification of Sub-roll

3” 2” 1”

3” 2” 1”

Dimension

1.5×1.3×1.5m

1.5×1.4×1.5m

Weight

600kg

800kg

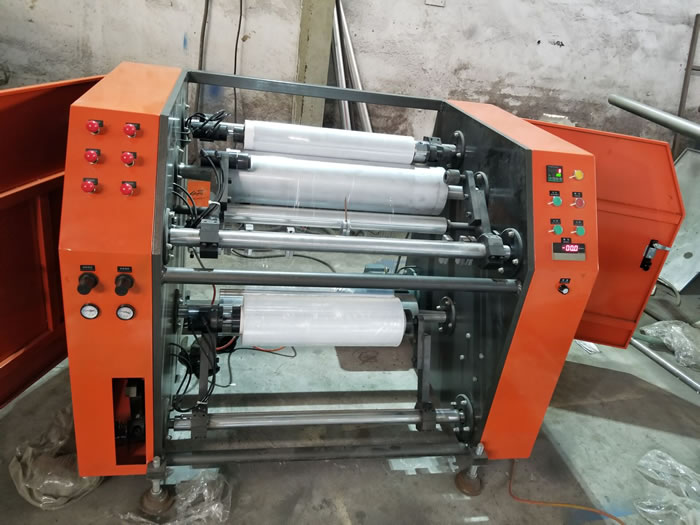

reality machine picture
