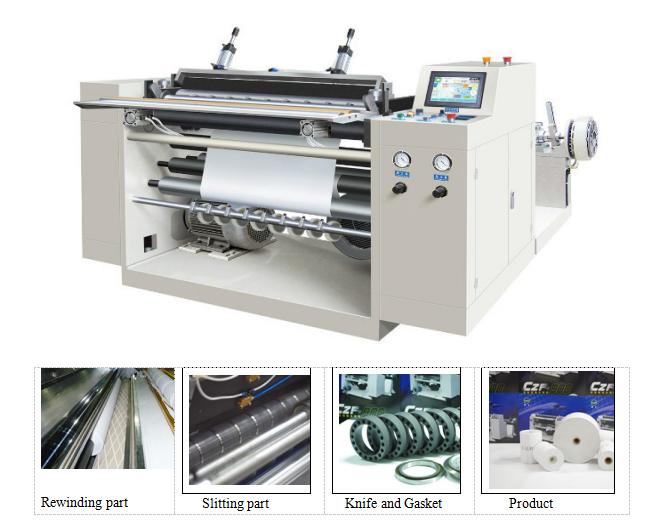

CFQ-900 Computer Thermal Paper Slitting Rewind Machine
| CFQ-900 Computer Thermal Paper Slitting Rewind Machine |
| Categories: Slitting Rewinder Machine |
| Tel: 0086 577-66817170 |
| Mobile: 0086 15858567170 |
| Email: rahsjx@rahsjx.com |
| Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA. |
1.Description :

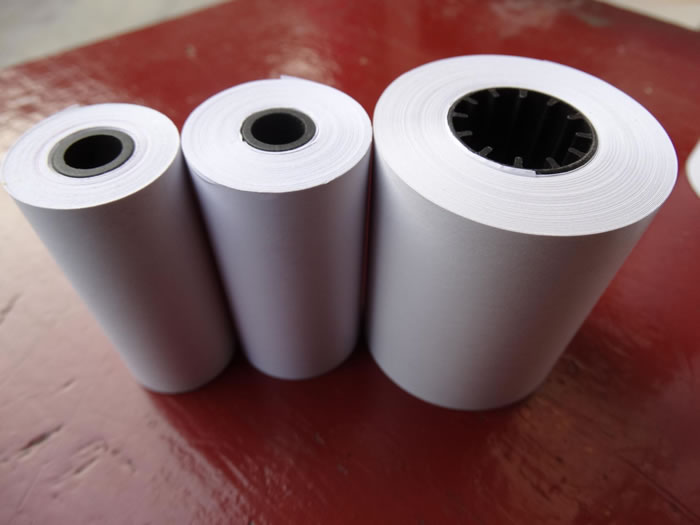

USAGE: it is mainly suitable for slitting all kinds of FAX PAPER, CASH REGISTER, COMPUTER BILL, MEDICAL RECORD PAPER,POS PRINTING PAPER,ATM REEL PAPER, film and self adhesive paper etc.
2.FUNCTION:
It is adopt the surface rewinding way, automatic replicate, insert reel. The electric part adopt the most advanced PLC controller.
All of the program are set by the touch screen(PLC). Unwinding is used to automatic loading system, the tension force is controlled by the Programmable Logic Controller. It is the most advanced numerical control cash register slitting equipment in China
3.Main Technical Specification
|
Model |
CFQ-900 |
|
Suitable material |
55-150g paper |
|
Max. Unwind width |
900mm |
|
Max. Unwind diameter |
800mm |
|
Unwind core diameter |
76mm |
|
Unwind tension force |
10N.M |
|
Machine slitting speed |
150m/min |
|
Max. Rewind diameter |
250mm |
|
Slitting width |
30-900mm |
|
Main motor |
2.2kw |
|
Rewind core diameter |
0.5inch, 1inch, etc |
|
Total power |
4.5kw |
|
Voltage |
380V,50HZ,3phase |
|
Weight |
1600kg |
|
Overall size |
2.2×2.1×1.4m |
-
