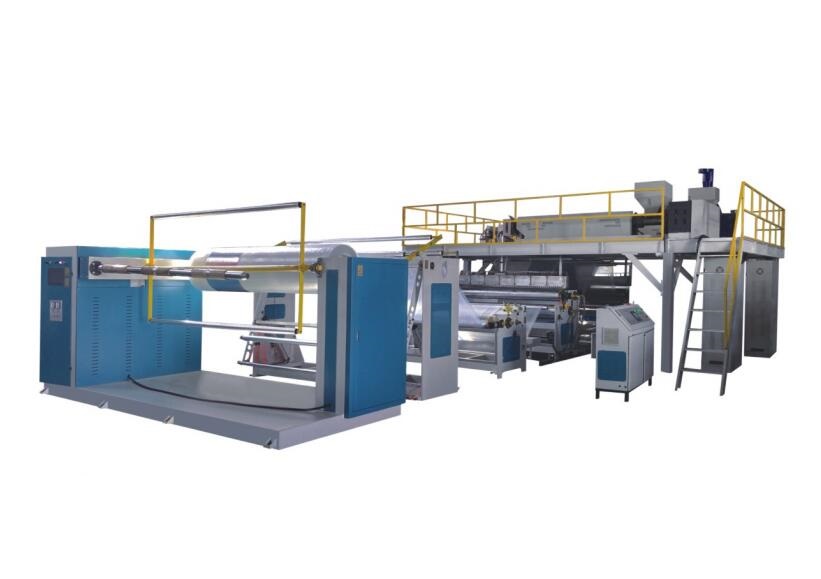

HSQPF-1500/2000/2500 Double screw Co-extrusion 3-5 layers PE Air Bubble Film Machine

HSQPF-1500/2000/2500 Double screw Co-extrusion 3-5 layers PE Air Bubble Film Machine |
Categories: Stretch Film/Bubble Film Machine Series |

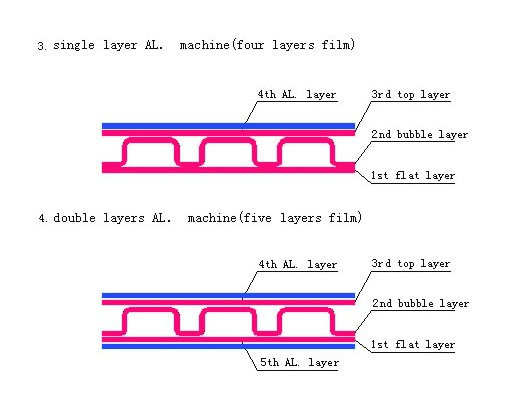

double screw etrusion bubble film 3layers, out layer can laminating 2 layers alum. foil, pearl film,etc to reach 5 layers |
Tel: 0086 577-66817170 |
Mobile: 0086 15858567170 |
Email: rahsjx@rahsjx.com |
Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA. |
1.Feature
1.1 This air crew adopts the disposable shaping craft.
1.2 It is our factory that draws domestic and international advanced technology extensively, through
a large number of production practices in having ordinary equipment originally, develop, design, can
produced polyethylene compound bubble (cushion) membrane in succession.
1.3 Designs science, practical. Rational in structure of the machine.
2. Machine working diagram
3.Characteristic
3.1 This machine adopts once-through shaping technique, thus has high efficiency and excellent product quality.
3.2 This machine set has such features as scientific and reasonable structure design, smooth and
reliable running and convenient operation and maintenance.
3.3 Polyethylene air-cushion film (also called polyethylene bubble film), which is divided into two kind: ordinary polyethylene
air-cushion film and composite polyethylene air-cushion film, is a kind of packing material which has been widely used at present.
3.4 It not only has good cushioning effect, shock resistance and heat-sealing performance, but also has such advantages as good corrosion resistance and transparency, etc.
3.5 So it has been widely used for packing, household wares, post parcel, bicycle , polyurethane furniture, etc.
4.Application:
4.1 The bubble film is made of LDPE material.
4.2 It can be used for various packaging purposes such as moisture proving, dust proving, shock proving,
and static prevention.

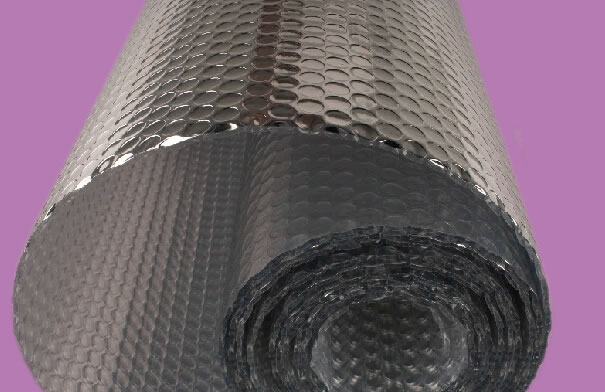

4.3 It can also make into laminated films with aluminized film, foamed PE sheet, and paper are the applications
of sun shading, heat insulation, and packaging.
5. Main technical specification
Model
HSQPF-2000
HSQPF-1500
Main screw diameter
90mm
75mm
Sub screw diameter
70mm
60mm
L/D ratio
30:1
30:1
Main motor power
30KW
22KW
Sub motor power
18.5KW
15KW
Max. Film width
2000mm
1500mm
Bubble size
10×3.4mmor other size according to customer request make
Output capacity
150-180KG/H
90-100KG/H
Total power
110KW
90kw
Overall dimension
10×8.5×2.5m
9×8×2.5m
Gross weight
6500KG
5800KG

-
