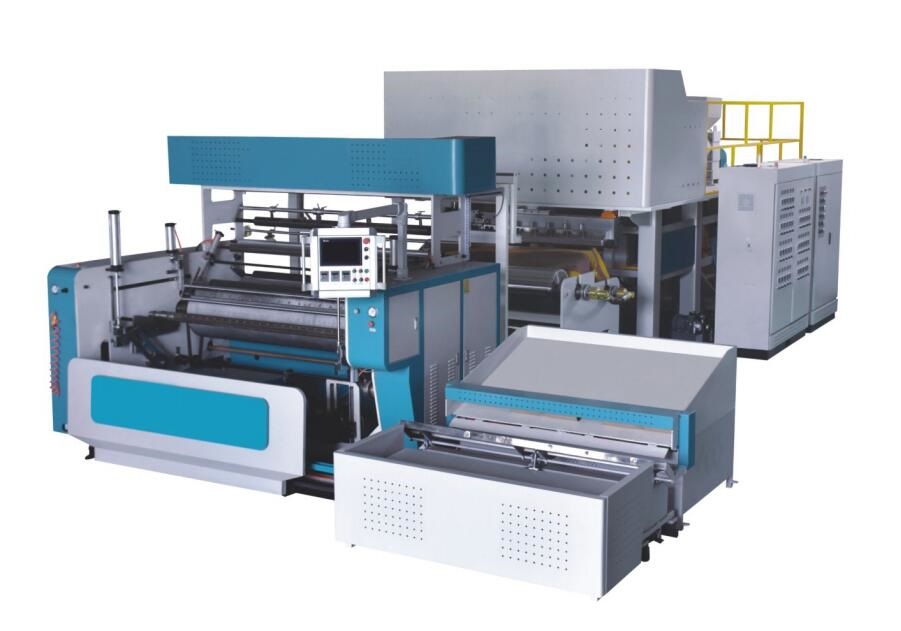

LYM-1000-1500x3C Automatic 3 layers co-extrusion PE Stretch Film Machine

Home > Stretch Film/Bubble Film Machine Series

LYM-1000-1500x3C Automatic 3 layers co-extrusion PE Stretch Film Machine
LYM-1000-1500x3C Automatic 3 layers co-extrusion PE Stretch Film Machine
Categories: Stretch Film/Bubble Film Machine Series
3layers co-extrusion stretch film machine with fully automatic roll change, paper core change, save time and labour!
Tel: 0086 577-66817170
Mobile: 0086 15858567170
Email: rahsjx@rahsjx.com
Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA.
Product Details :


1.APPLICATION:

1)this machine adopt LLDPE as the basic mateiral, adopt different type of resin, extrusion the single side sticky or double side sticky stretch/cling film;

2)This film with strong tension, it both with good retraction memory and self-sticky, can let the goods package well, then can avoid the goods collapse or dirty pollution on the transport way.

3)The film with good transparency and extensibility,this stretch film widely used for big goods Unitized pallet package, it is the great replacement product for the hot shrink film.

2.MAIN TECHNICAL SPECIFICATION

Model

LYM-1000×3 C

LYM-1500×3C

Screw diameter

70mm/55mm×2

90mm/65mm×2

Screw L/D ratio

30:1

30:1

Die head width

1250(mm)

1600(mm)

Finished product width

1000mm/500mm×2roll

1500mm/500mm×3

Film thickness

0.006-0.05(mm)

0.01-0.05(mm)

Film structure

A/B/C;A/B/A

A/B/C

Max. Output capacity

100-125KG/H

160-200KG/H

Machine liner speed

50-100M/min

50-60m/min

Total power

120KW

160KW

Power supply

380V/3phase/50HZ

380V/3phase/50HZ

Dimension

8×3×3.5M

8.4×6×3.5m

Total weight

5500KG

7000kg

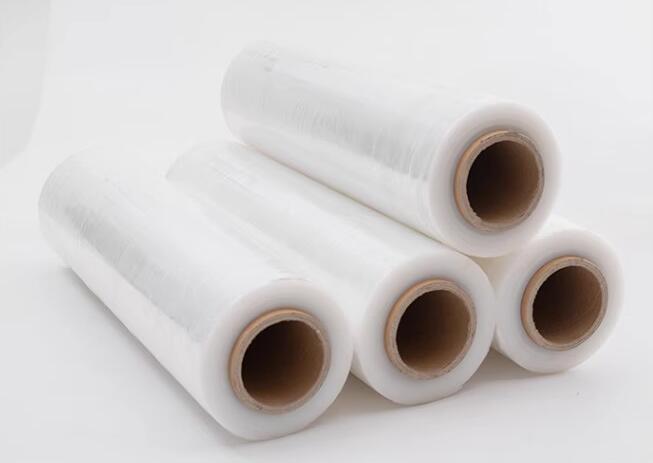

3.stretch film sample
