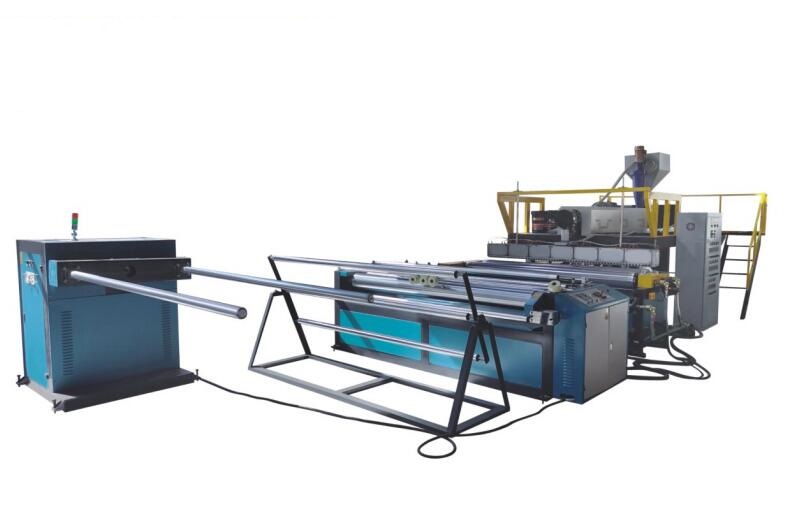

HSQP-1200-2500 Single screw Double layers PE air bubble film machine

Home > Stretch Film/Bubble Film Machine Series

HSQP-1200-2500 Single screw Double layers PE air bubble film machine
HSQP-1200-2500 Single screw Double layers PE air bubble film machine
Categories: Stretch Film/Bubble Film Machine Series
Tel: 0086 577-66817170
Mobile: 0086 15858567170
Email: rahsjx@rahsjx.com
Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA.
Product Details :


Characteristic

This machine adopts once-through shaping technique, thus has high efficiency and excellent product quality.

This machine set has such features as scientific and reasonable structure design, smooth and reliable running and convenient operation and maintenance.

Polyethylene air-cushion film (also called polyethylene bubble film), which is divided into two kind: ordinary polyethylene air-cushion film and composite polyethylene air-cushion film, is a kind of packing material which has been widely used at present.

It not only has good cushioning effect, shock resistance and heat-sealing performance, but also has such advantages as good corrosion resistance and transparency, etc.

Application

The bubble film is made of LDPE material.It can also make into laminated films with aluminized film, foamed PE sheet, and paper are the applications of sun shading, heat insulation, and packaging.

Main Technical Specification

Model

HSQP-1500

HSQP-2000

Main material

LDPE

LDPE

Screw diameter

75mM

90mm

Mold width

1700mm

2100mm

L/D ratio

28:1

28:1

Main motor

22KW

30kw

Heating power

22KW

32kw

Finished film width

1500mm

2000mm

Rewind diameter

1000mm

1000mm

Main bubble specification

10×4mm/6×3mm/20×10mm

Output capacity

60-80kg/h

80-120kg/h

Power source

380V,3phase

Total installed capacity

60KW

80KW

Overall dimension

6×3×2.5m

7.5×3.3×2.5m

Gross weight

4500KG

6000KG

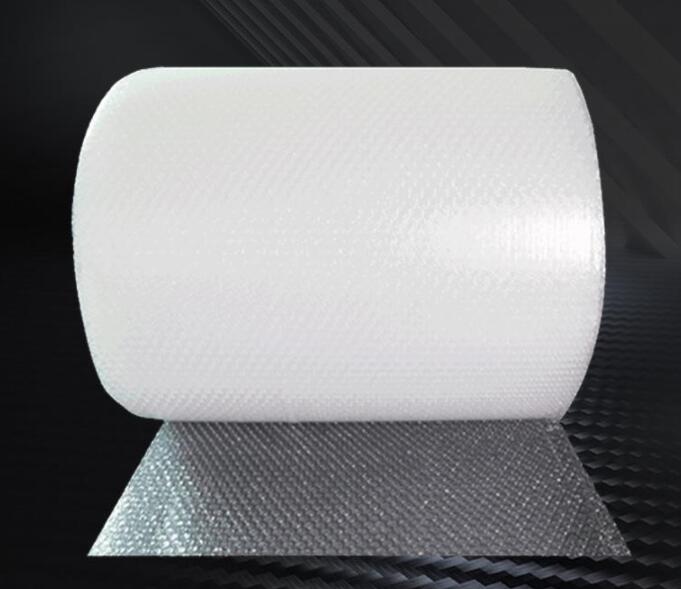

prodcut sample
