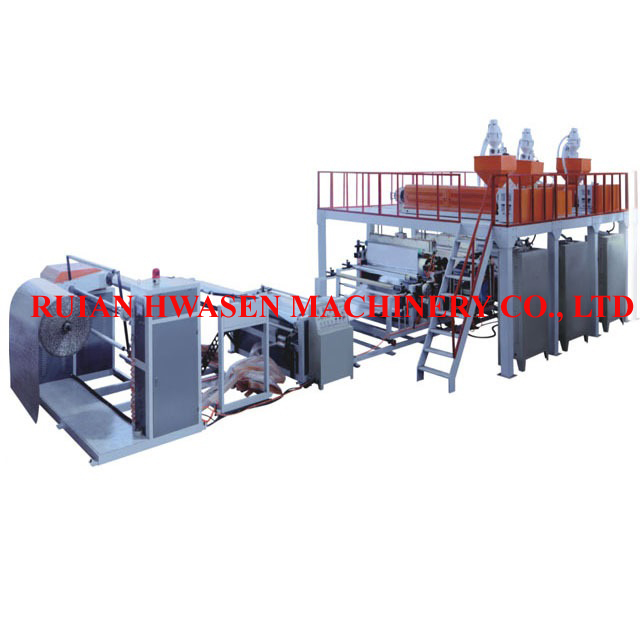

HSQPF-1500/2000/2500 Three screw Co-extrusion 5-7 Layers PE Air Bubble Film Machine

Home > Stretch Film/Bubble Film Machine Series

HSQPF-1500/2000/2500 Three screw Co-extrusion 5-7 Layers PE Air Bubble Film Machine
HSQPF-1500/2000/2500 Three screw Co-extrusion 5-7 Layers PE Air Bubble Film Machine
Categories: Stretch Film/Bubble Film Machine Series
5-7layers bubble film machine adopt 3 screw co-extrusion, outside can laminating two layer aluminum foil, pearl film, etc.
Tel: 0086 577-66817170
Mobile: 0086 15858567170
Email: rahsjx@rahsjx.com
Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA.
Product Details :


1.Feature

1.1 This air crew adopts the disposable shaping craft.

1.2 It is our factory that draws domestic and international advanced technology extensively, through a large number of production practices in having ordinary equipment originally, develop, design, can produced polyethylene compound bubble (cushion) membrane in succession.

1.3 Designs science, practical. Rational  in structure of the machine.

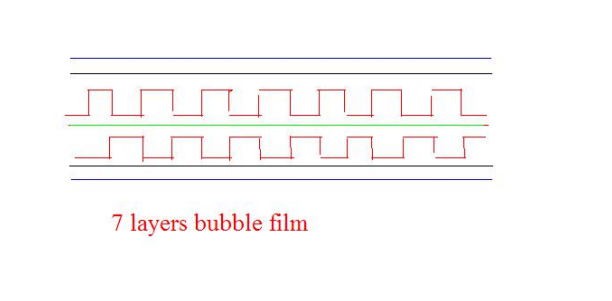

2. Machine working diagram

3.Characteristic

3.1 This machine adopts once-through shaping technique, thus has high efficiency and excellent product quality.

3.2 This machine set has such features as scientific and reasonable structure design, smooth and reliable running and convenient operation and maintenance.

3.3 Polyethylene air-cushion film (also called polyethylene bubble film), which is divided into two kind: ordinary polyethylene air-cushion film and composite polyethylene air-cushion film, is a kind of packing material which has been widely used at present.

3.4 It not only has good cushioning effect, shock resistance and heat-sealing performance, but also has such advantages as good corrosion resistance and transparency, etc.

3.5 So it has been widely used for packing, household wares, post parcel, bicycle , polyurethane furniture, etc.

4.Application

4.1 The bubble film is made of LDPE material.

4.2 It can be used for various packaging purposes such as moisture proving, dust proving, shock proving, and static prevention.

4.3 It can also make into laminated films with aluminized film, foamed PE sheet, and paper are the applications of sun shading, heat insulation, and packaging.

5.Main Technical Specification

Model

HSQPF-2000

HSQPF-1500

Main and sub-extruder screw diameter

80mm×2/ 75mm×1

75mm×2/ 55mm×1

L/D ratio

30:1

30:1

Main and sub-extruder electrical power

30kw×2/ 22kw×1

22kw×2/ 15kw×1

Width of production

2000mm

1500mm

Die head width

2200mm

1650mm

Main bubble specification

10×3.4mm/25×10mm or other size for choice

Output capacity

120-150kg/h

120-150kg/h

Total installed capacity

180kw

100kw

Overall dimension

10×8.5×2.5m

9×5.5×3m

Gross weight

8000kg

6500KG
