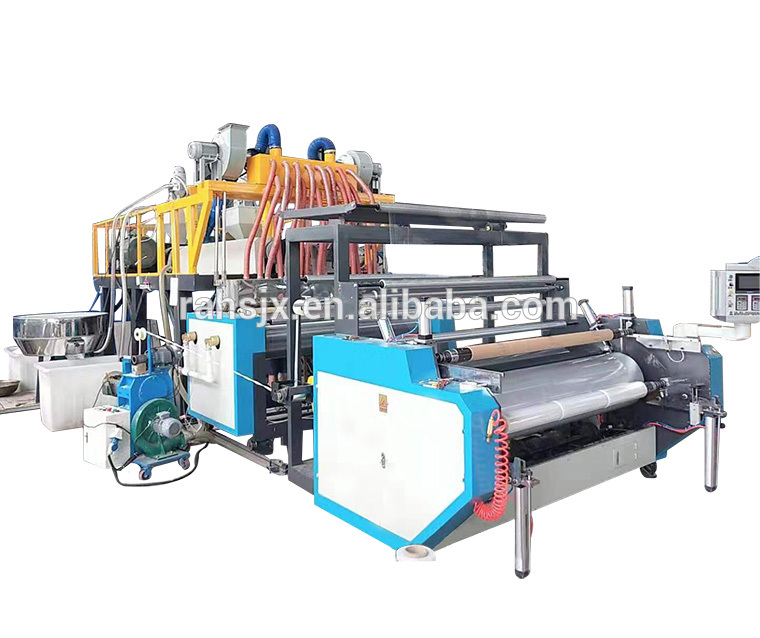

LYM-1000X2/1200x2/1500x2 high speed double layers stretch film machine
| LYM-1000X2/1200x2/1500x2 high speed double layers stretch film machine |
| Categories: Stretch Film/Bubble Film Machine Series |
| Tel: 0086 577-66817170 |
| Mobile: 0086 15858567170 |
| Email: rahsjx@rahsjx.com |
| Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA. |
1.APPLICATION:
1)this machine adopt LLDPE as the basic mateiral, adopt different type of resin, extrusion the single side
sticky or double side sticky stretch/cling film;
2)This film with strong tension, it both with good retraction memory and self-sticky, can let the goods package well, then can avoid the goods collapse or dirty pollution on the transport way.
3)The film with good transparency and extensibility,this stretch film widely used for big goods Unitized
pallet package, it is the great replacement product for the hot shrink film.
2.MAIN TECHNICAL SPECIFICATION
|
Model |
LYM-1000X2 |
LYM-1200X2 |
LYM-1500X2 |
|
Screw diameter |
65mm/55mm |
70mm/60mm |
75mm/65mm |
|
Screw L/D ratio |
30 : 1 |
30 : 1 |
30 : 1 |
|
Die head |
1250 （mm） |
1350 （mm） |
1750 （mm） |
|
Film width |
1000（500 ×2） |
1200（600 ×2） |
1500（750 ×2） |
|
Film thickness |
0.008- 0.05（mm） |
0.008- 0.05（mm） |
0.008- 0.05（mm） |
|
Film layer |
A / B |
A / B |
A / B |
|
Output capacity |
80-100 kg/h |
100-130 kg/h |
120-150 kg/h |
|
Machine speed |
50- 100 m/min |
50- 100 m/min |
50- 100 m/min |
|
Total power |
92 kw |
120 kw |
150 kw |
|
Dimension |
8000×2500×2500 mm |
8200×2500×2600 mm |
8500×2600×2600 mm |
|
Gross weight |
4.5 T |
5 T |
5.5 T |
